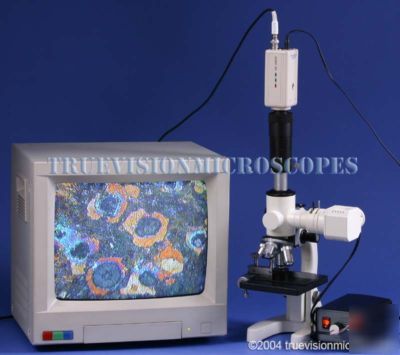

Clearance 40X-600X metallurgical monoc microscope
Metallurgical microscope for imaging of metallic and opaque specimens.
Projection screen NOT included.
Click to enlarge image! Taken Under 20x objective
METALLURGICAL - METALLOGRAPHIC
EPI - ILLUMINATION MONOCULAR UPRIGHT MICROSCOPE
MICROSCOPE IS SLIGHTLY SCRATCHED AND MAY HAVE MINOR IMPERFECTIONS AND COULD BE A LITTLE DIRTY FROM BEING ON OUR LAB BENCH.
IT ORIGINALLY CAME IN STYROFOAM, BUT WE MOVED IT TO A BETTER ALUMINUM CASE.
NOT SURE WHY FACTORY MADE THE OPENING.
PRICE BELOW COST FOR QUICK CLEARANCE.
* Nice Quality Metallurgical - Metallographic Monocular Microscope!
* Ideal for Identification and Analysis of the Structure of Different Metals and Alloys.
* Great for Detailed Inspection of a Metallic Surface.
* Research Grade Performance with Highly Advanced Features and Optics!
* Perfect for Metallurgical Laboratories, Foundries, Silicon Wafer Inspection, Industrial Applications, and Quality Control Labs!
* Great for Viewing Opaque Surfaces - Light Travels Through the Objective and Reflects off Surface of Object and Back Into Objective!
* No Worries about how to get Light to the Specimen's Surface!
* Epi-Illumination Microscopy System: Light From Side Housing goes through the Horizontal Shaft, Reflects Down through Objective to the Specimen, Reflects off the Specimen, and Back into the Objective and then to the Eyepiece. Also known as Reflected Light Microscopy.
* Eight Magnifications: 40x, 60x, 100x, 150x, 200x, 300x, 400x, and 600x.
* Two Eyepieces Included: Wide Field 10x and 15x.
* Four Objectives: 4x, 10x, 20x, and 40x.
* Variable Intensity 20W Tungsten Halogen Illumination with External Power Transformer.
* Two Filters Included: Blue (Daylight) and Green.
* Iris Diaphragm Adjustment for Better Light Control.
* Graduated Mechanical Stage Size 125mm x 120mm with X-Y Specimen Holder Movement Knobs.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 40mm.
* Inclinable: Whole Scope Pivots on Angle for Maximum Versatility and Ease of Viewing.
* Total Overall Height of Microscope: 360mm.
* Instrument Weight: 11.5 lbs.
* Comes with Dust Cover, Extra Bulb, and Lens Cleaning Cloth.
* Optional Polarizer and Analyzer for great Polarized Images.
* Bright and Clear Projected Images on Optional 90mm Diameter Glass Dome Projector Screen.
* Optional Screen is Great for Ease of Viewing and for Training Applications where many need to View!
* Optional Measuring Capability: Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!
