Canon dslr slr camera lens adapter 4 microscope efmount

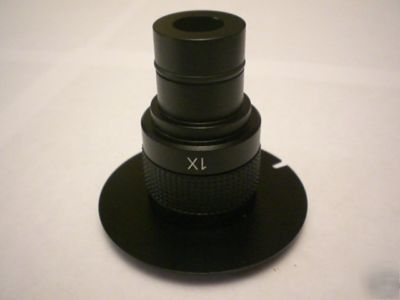

The adapter and sleeves are shown where with the EF- mount (54 mm male Bayonet type) is for easy attachment. The additional microscope adapter sleeves slide on the male relay lens end to give you a total of three sizes 23.2, 30, and 30.5 mm for insertion into a trinocular port, microscope or macroscope eyepiece.
The Adapter being unscrewed from the 1X relay len. The relay lens has a standard one inch (25mm) diameter, with 32 threads per inch designated as "1-32 UN 2A". This is the thread that most digital cameras use that are less than 35mm.
Sliding on one of the sleeves allows you to change from the standard Trinocular port to a Microscope or Macroscope eyepiece insertion when a camera port is not an option .
This is a picture of a Canon Camera with the front lens removed to show the "EF - mount" which is a three lug bayonet style mount
CANON DSLR SLR CAMERA LENS ADAPTER 4 Microscope EF-mount
CANON DSLR SLR CAMERAS EF-mount C-Mount adapter Kit single lens reflex digital
