Butterfly valve 6" with actuator SR115 set 05
MANUFACTURER: VALVESTOCK - VALBIA.

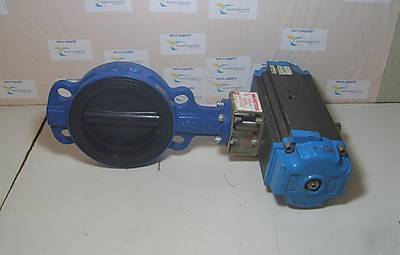

DESCRIPTION: BUTTERFLY VALVE WITH ACTUATOR.

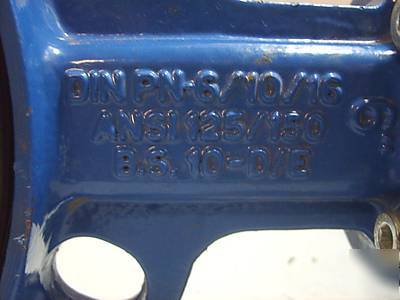

* VALVESTOCK BUTTERFLY VALVE WAFER PATTERN 6" TYPE PN-6/10/16 ANSI 125/150 B.S.10-D/E Max Temperature: 95 C (Continuous) 120 C (Intermittent)
Max Pressure: 16 bar Body: cast iron Disk: stainless steel Seat: EPDM Shaft and Pins: stainless steel

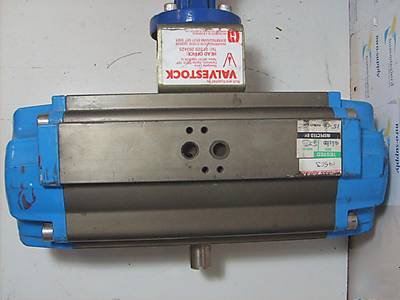

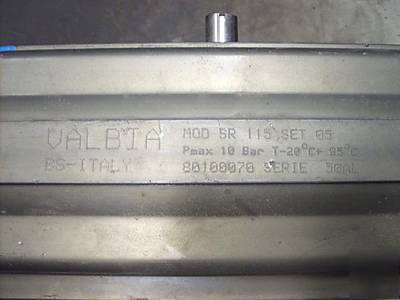

* VALBIA PNEUMATIC ACTUATOR SR 115, SET 05 Series SR (Spring Return)
* Pmax: 10 Bar (145.04 PSI) T-20 + 85 C
* Spring Torque: end 805 lbs*in - start 1168 lbs*in (Spring torque represents torque available when air supply fails)
