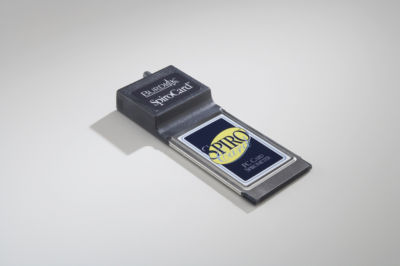

Burdick spirocard spirometer
The SpiroCard Spirometer is the only PC Card Spirometer in the world. The SpiroCard brings full-function spirometry to off-the-shelf computers and handhelds. The SpiroCard Spirometer is the smallest, lightest and most accurate Spirometer on the market.
* Calibration not required. Our patented pre-calibrated, disposable mouthpieces eliminate the need to sterilize or calibrate the equipment
* Exceeds the ATS Standardization of Spirometry Guidelines (1994)
* More than 25 parameters calculated. Only view and report on the test parameters you desire
* FEV6 and FEV1/FEV6 (recommended by NLHEP)
* Full-function PFT performs FVC, SVC, MVV, Pre/Post Testing and Flow Volume Loop tests
* Automatic test quality messages, narrative interpretation and lung age calculation
* Easy-to-use Office MedicTM Software allows you to customize report parameters, predicted normals and graphs
* Can be connected via a Type II PC Card Slot or a USB Port
* Why pay more for functionality that you don't need?
* 3 Year Manufacturers Warranty
* SpiroCard is on a single PCMCIA card, providing diagnostic testing in an easily portable package
* Full-featured spirometer performs all measurements performed on conventional devices
* Spirometer features patented, disposable and biodegradable patient filters
* Burdick's SpirOxCard includes pulse oximetry in the same device - Both devices interface to Office Medic software for real-time data access, reporting and archival
* Dimensions Spirometer: 2.09" W x 5.51" D x 1.02" H (53 mm x 140 mm x 26 mm)
* Weight: 85 grams (less than 3 ounces)
* Certifications: UL CUL listed
* Warranty Device: 3 years return for exchange; Sensors 90 days Oximeter Specifications
* Ranges Percentage of saturation: 0 to 100%; pulse rate: 18 to 300 pulses per minute
* Accuracy: SpO2 (+/- 1 SD) = 70-100% +/- 2% of full scale; Pulse rate: +/- 3% (+/- 1 digit)
* Record time: Up to 24 hours
* Parameters: SpO2 pulse rate Spirometry Specifications
* Range FLOW: +/- 14 liters/second
* Accuracy: Comply with American Thoracic Society Standards for Spirometry,1994 Update
* Flow: +/- 5% of indication or 200 ml/sec, whichever is greater for FEF 25 - 75, and +/- 10% or 400 ml/sec whichever is greater for PEF
* Parameters measured: FVC, FEV0.5, FEV1, FEV1/FVC, FEV3, FEV3/FVC, PEFR, FEF25%, FEF50%, FEF75%, FEF25-75%, FIVC, FIV0.5, FIV1, FIV1/FIVC, FIV3, FIV3/FIVC, PIFR, FIF50%, FIF 25-75%, FIF.21.2, FVC/FIVC, PIFR, Ext.Vol., MVV, RR, MTV, SVC BTPS conditions Comply with American Thoracic Society Standards for Spirometry, 1994 Update
* Elevation corrections: 0 to 15,000 feet (0 - 4,572 meters)
* Calibration: ATS 3-speed or standard calibration check
* Predicted normals: Crapo/Cherniack/Morris/Knudson 1983 Polgar/Hsu/Roberts/Warwick/ECCS
* Tests performed: FVC, pre/post testing, flow volume loop, MVV, SVC Measuring time FVC, up to 30 seconds
* Printed scale Flow-Volume: (vertical) .5 cm/L/S; (horizontal) 1 cm/1L
* Volume-Time: (vertical) 1 cm/iL; (horizontal) 1 cm/second
* Computer Requirements: Office Medic Software Desktop or laptop PC: Operating system: Windows 98/2000/XP Home or Pro. SpirOxCard may not fit in all internal PC slots; Office Medic minimum requirements equal to operating system minimum requirements; Type II PC Card Slot; The SpiroCard may not fit into some desktop computers
