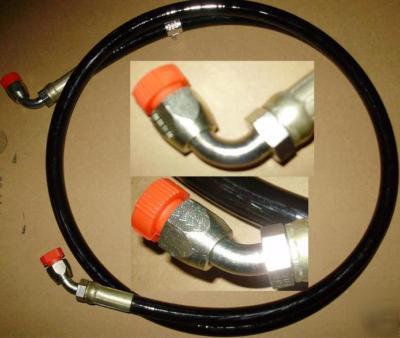

New aeroquip FC374-08 hydraulic hose 3500 psi hemtt
01276 FZ166HHH0890180AA EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
NAME ITEM NAME HOSE ASSEMBLY,NONMETALLIC
INSIDE DIAMETER 0.500 INCHES NOMINAL
TEMP RATING -65.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT
OUTSIDE DIAMETER 0.810 INCHES NOMINAL
INNER CONVEYING TUBE MATERIAL PLASTIC, POLYESTER
FIRST END CONNECTION DESIGN ELBOW
SECOND END CONNECTION DESIGN ELBOW
FIRST END FLOW ANGLE IN DEG 45.0
SECOND END FLOW ANGLE IN DEG 90.0
ANGLE BETWEEN RIGID ELBOW FITTINGS IN DEG 180.0
END ITEM IDENTIFICATION HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)
BURST TEST PRESSURE 14000.0 POUNDS PER SQUARE INCH
FIRST END SWIVEL ACTION CAPABILITY INCLUDED
LAYER COMPOSITION AND LOCATION 1ST LAYER BRAIDED POLYAMIDE CORD
LAYER COMPOSITION AND LOCATION OUTER LAYER MOLDED POLYURETHANE
FIRST END FITTING/COMPONENT AND MATERIAL COMPLETE FITTING STEEL
MAXIMUM OPERATING PRESSURE 3500.0 POUNDS PER SQUARE INCH
FIRST END THREAD SERIES DESIGNATOR UNF
FIRST END NOMINAL THREAD SIZE 0.750 INCHES
MEASURING METHOD AND LENGTH 89.000 INCHES NOMINAL OVERALL
SECOND END SWIVEL ACTION CAPABILITY INCLUDED
PROPRIETARY CHARACTERISTICS PACS
ANR HEAVY EXPANDED MOBILITY TACTICAL TRUCKS (HEMTT), ABT, M977, M978, M983, M984 AND M985 (TACTICAL VEH
