ICD2/MCD2/PICKIT2/pic KIT2 universal programming module

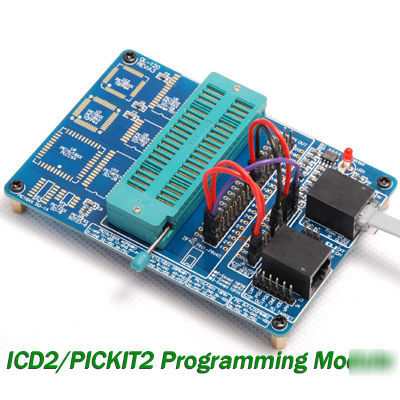

ICD2/MCD2/PICKIT2/PIC KIT2 Universal Programming Module
1. This is an easy to use Universal Programming Module for ICD2,MCD2,ICD2.5,PICKIT2.
2. Using a clamp for the SOIC Support socket :SOT23-6(PIC10FXXX) SO-8 SO-14 SO-18 SO-28 TQFP44 PQFP44 PLCC44 TQFP64 DIP40.
3. VPP can choose before VDD, ICD2 support internal oscillations and internal reset chip's repeated programming
4. We have to you DuPont lines for programming different chips (red DuPont lines*4,black DuPont lines*4,purple DuPont lines*1, yellow DuPont lines*1,white DuPont lines*1)
5. Have ICSP OUT interface, convenient to other target's internal oscillation and internal reset chip programming
6. 3M ZIF on programmable chip package: DIP8, DIP14, DIP18, DIP20, DIP28, DIP40.
1 QL1201 Universal Programming Module
5. 10cm 1007 22# DuPont lines , red *4,black *4,purple *1, yellow *1,white *1
Official Web site information: http://www.pic16.net/en/wzcp/ql1201/ql1201.htm
