Plasmacam inverted control panel bracket modification
This Bracket set is a great mod for your PlasmaCam!
* Avoid collisions with the control panel's sharp cooling fins!
* Avoid damaging machine &/or personal injury!
* Gain more room for traffic around your machine.
* Kit includes both brackets needed for mod
I have noticed alot of Plasma Cam owners have had issues with the way that the control panel is located. I have seen several PlasmaCam units for sale & almost always noticed that the end cooling fins have been broken off (probably from collisions). I thought that I would come up with a solution on my own machine to remedy this issue. After fabricating & installing the brackets, I was able to work more freely with and around my machine. All controls are easily accessible & you dont have to worry about them sticking out & causing a hazzard.

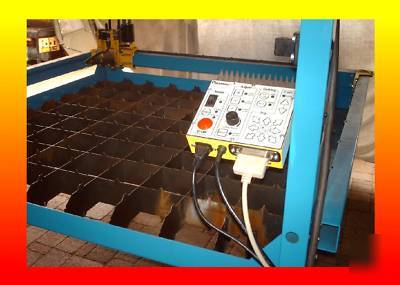

The pictures below show before & after shots of the modification. The conversion itself takes less than an hour. You will have to drill a couple of holes for the new offset & you reuse the existing nuts & bolts!
The picture below shows the machine before the mod.
The pictures below show that there is still plenty of room to handle the material to be cut next to the new location of the panel. I have had no problems with placing material onto my machine. The new location does NOT interfere with the way the machine operates & functions. You just have to make sure you route the cables properly & out of way.
