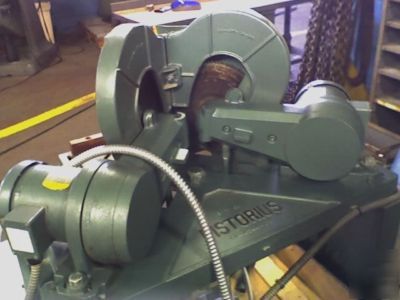

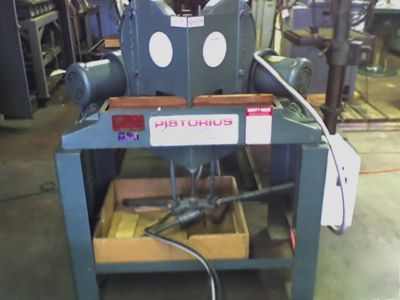

Pistorius double mitre saw mn-200

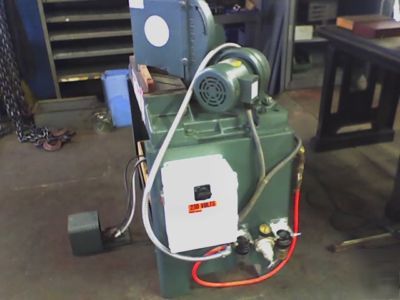

MODEL MN-200 -1-1/2 HP MOTORS-230 VOLTS -3PHASE-BUILT 1994
Designed and constructed to withstand continuous day-in day-out high speed production. Machine is virtually maintenance free, eliminating costly downtime
* Designed for the production oriented operation when compressed air is available.
* Compressed air does all the work and allows for high speed cycling on a continuous basis.
* Ideal for all types of flat and compound miter cutting.
1. Phenolic faced head retainer provides 360 surface contact area. Simple adjustment assures perfect saw head tracking and movement.
2. Exclusive 8" diameter hardened and ground ball thrust bearing saw head pivot. This high quality, precision made bearing assures precise saw blade movement through its arc of travel.
3. Full 360 rubber seal helps keep dust and chips out of pivot mechanism.
4. Heavy duty cog type, positive non-slip timing belt drive.
5. Fine micrometer miter angle adjustment (within 2 range) for perfect miter angle settings.
6. Double ball bearing saw spindles are available in cartridge form and are simple to remove and replace if necessary.

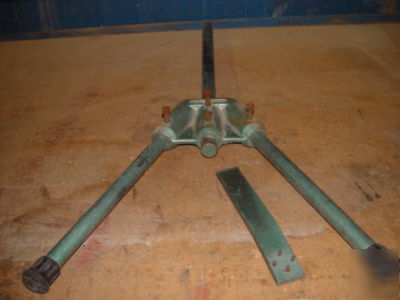

8. Linkage arms are fitted with self lubricating oilite bushings at each end. Both saw heads move simultaneously by interconnected linkage
(2) 1-1/2 HP - 3,450 RPM motors-3phase power

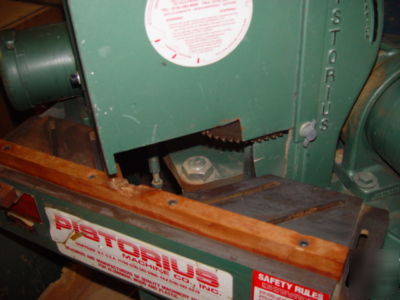

12" blade dia., non-staggered blade movement, air actuated & foot pedal operated.
2-5/8" Max. height & 3-5/16" max. width cap
This item can be viewed and is in operation
