Hand held fiber optical microscope 200X (cl) inspection

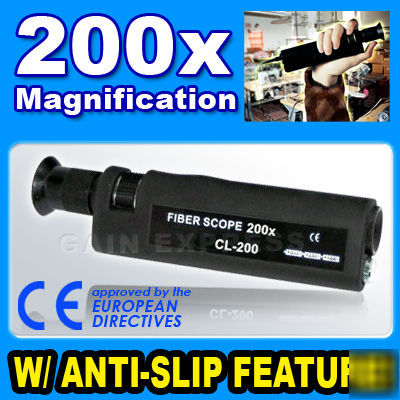

Hand Held Fiber Inspection Microscope 200x (CL)
Coaxial Illumination (CL-200)
Hand Held Fiber Microscope is used for inspecting fiber terminations or cleaved fiber, providing the most critical view of fiber end faces or splices. Coaxial illumination (CL) series produces excellent detail of scratches and contamination with its good optical performance and integrated laser safety filters. It is the clear choice for critical examination of polish quality.
Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face. It produces excellent details of scratches and contamination. For critical examination of polish quality, we strongly recommend you to use this fiber microscope (CL).
Features: This device is very effective, reliable, easy and safe to use.
* Versatile adapter interface
* Momentary push button on/off switch
* Laser filter installed for eye protection
* It comes with a universal adapter (2.5mm) and compatible with ST, FC, SC, E2000, and 2.5mm DIN
* Rubber Housing: Anti Slip
* Optical Magnification: 200x
* Power source: 3 x AAA batteries (not included)
* Light Source: White LED, rated for 100,000 hours
* Size : 225mm (8.76") L x 32mm (1.25") Diameter
* Controls: Momentary on/off switch for light source, Fine Focus control wheel
* Safety Filter: Built in IR filter
* Adapter Interface: User interchangeable adapters
* Input the Fiber which will be checked into the Fiber insert Entrance,
insert another fiber connector into the light source entrance.
* Look through the eyepiece and press the ON/OFF LED switch.
* Adjust the focus control, just to find the clearest viewing.
All our products are manufactured under the strict quality control guidelines established by EN ISO9001-2000 Standards
