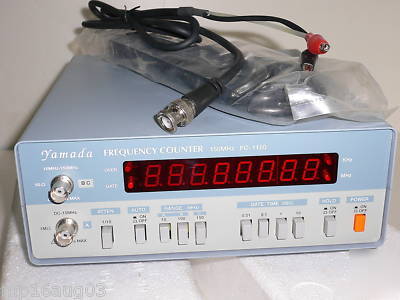

Frequency counter yamada 1~150MHZ tfc-1150
Frequency range : 1Hz ~ 150MHz
Resolution : 0.1 , 1 , 10 , 100Hz
Gate time : 10s ,1s, 100ms, 10ms
Accuracy : + - (1Hz + 1 digit + time base Err)
Input Data Sensitivity (RMS) : 10Hz ~ 10MHz : 10mV ( Ch.A ) / 10MHz ~ 60MHZ : 3mV ( CH. B ) / 100MHz ~ 150MHz : 25MV ( CH. C )
Input Impendance : 1M ohm ( CH.A) / 50 ohm (CH. B & C )
Maximum Input Voltage : 150V RMS ( CH. A ) / 5V RMS ( CH.B & CH.C )
Oscillator data (Frequency) : 10MHz Crystal
Oscillator data (Stability) : 5 ppm (0 - 50 C )

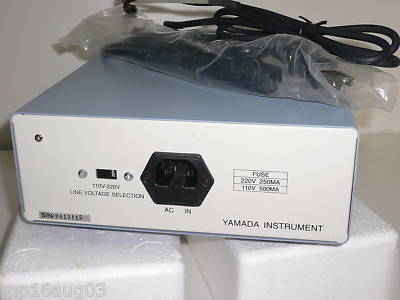

Input Power : AC 110V / 220V + - 10%
