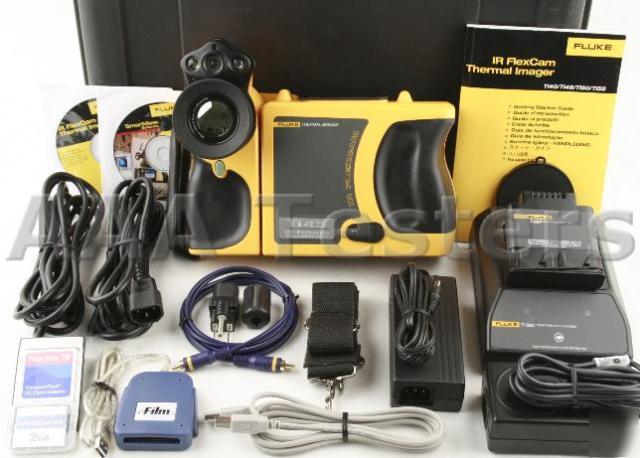

Fluke TI45FT-20 infrared thermal imager ir TI45
* Fluke Ti45FT-20 Infrared Thermal Imager
* Ti-SBC Smart Battery Charger w/ AC & Power Cord
* PCMCIA Compact Flash Card Reader
Fluke Ti45FT-20 Infrared Thermal Imager
30Hz With a Focal Plane Array Of 160x120
Temperature range -20 C to +600 C (-4 F to 1112 F)
This Unit Is In "Like New Condition"!
Includes Hard Carrying Case & Full Accessories!
* High resolution, low noise VOx detector for high quality images - 160 x 120
* Temperature range -20 C to +600 C (-4 F to 1112 F)
* Thermal Field of view - 20 mm lens 23 x 17 FOV
* The Fluke Ti45FT models feature everything needed for virtually any thermography task
* All Fluke FlexCam Thermal Imagers come standard with the patent-pending Fluke IR-Fusion Technology fusing visual (visible light) images with infrared images
* SmartView IR analysis and reporting software is included with each purchase along with free software upgrades for the life of your product
* Choose Fluke FlexCam Thermal Imagers when you need industry leading thermal sensitivity for high resolution, ultra high-quality images
* Troubleshooting Pinpointing the location of specific problems in equipment and systems
* Preventive/predictive maintenance Identify electrical and mechanical problems before they cause failure
* Industrial maintenance Check whether repairs have been performed correctly
* Process monitoring Real-time observation to ensure efficient and safe operations
* Quality control Examine prototypes and refine thermal management designs
The Fluke Ti45FT models feature everything needed for virtually any thermography task.
All Fluke FlexCam Thermal Imagers come standard with the patent-pending Fluke IR-Fusion Technology fusing visual (visible light) images with infrared images. SmartView IR analysis and reporting software is included with each purchase along with free software upgrades for the life of your product.
The Ti45FT models feature 160 x 120 detectors and temperature sensitivity (NETD) down to 0.08 C (80 mK) in the higher end model.
Choose Fluke FlexCam Thermal Imagers when you need industry leading thermal sensitivity for high resolution, ultra high-quality images.
23 horizontal x 17 vertical
Detector data acquisition/ image frequency
SmartFocus; one finger continuous focus (manual)
160 x 120 Focal Plane Array, Vanadium Oxide (VOx) Uncooled Microbolometer
Full thermal, full visual light or merged thermal-visual images. Picture-in-Picture
1280 x 1024 pixels, full color
2 C or 2 % (whichever is greater)
Centerpoint, center box (area min/max, average), moveable spots/boxes, user defined field/text annotations, automatic hot and cold point detection, visible color alarm above and below
13 cm (5 in) diagonal large high-resolution digital display
RS170 EIA/NTSC or CCIR/PAL composite video
Grayscale, grayscale inverted, blue red, high contrast, hot metal, ironbow, amber, amber inverted
Field of view (FOV): 9 horizontal x 6 vertical
Spatial resolution (IFOV): 0.94 mrad
Min focus distance: 0.6 m (1.97 ft)
