Estrella ag glass lined nutsche pressure filter vessel
ESTRELLA GLASS LINED FILTER 12000V 3/4 UNC 78/42USG

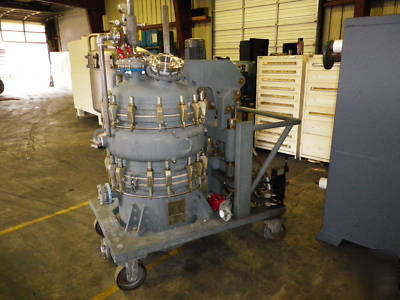

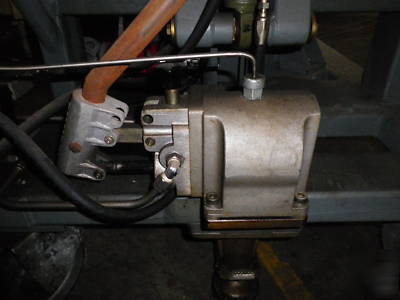

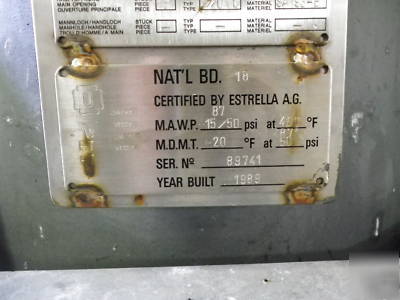

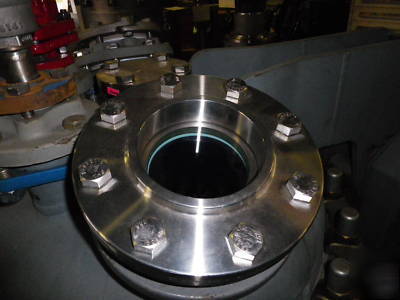

USED GLASS LINED FILTER. THIS WAS BUILT IN 1989 AND STILL LOOKS GREAT. THE JACKET IS MARKED THAT ONE OF THE HOLES HAS A CHIP IN THE GLASS BUT LOOKS TO HAVE BEEN REPAIRED AND IN USE. THE HYDRAULIC UNIT USED TO OPEN THE VESSEL MAY BE IN NEED OF REPAIR AS WE COULD NOT GET IT TO STROKE THE CYLINDERS ALTHOUGH THE PROBLEM MAY HAVE BEEN WITH THE OPERATORS RATHER THAN THE UNIT. ONE OF THE ROD ENDS (HEIM JOINTS) ON THE BOTTOM PORTION OF THE TANK IS MISSING ITS NUT(SEE PICTURES BELOW). THERE ARE 4 PLUGGED PIPE PORTS((2) 2 3/8", AND (2) 1 1/4").

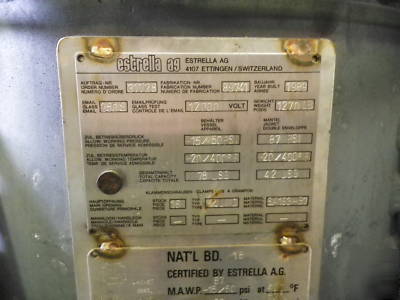

12000V, -15/+50 VESSEL WORKING PSI, 87 TANK WORKING PSI, -20/400F WORKING TEMP, 78USG VESSEL TOTAL CAPACITY, 42USG TANK TOTAL CAPACITY
