12" W or Dia Tsudakoma RNCM-300R 4th AXIS CNC ROTARY Tb

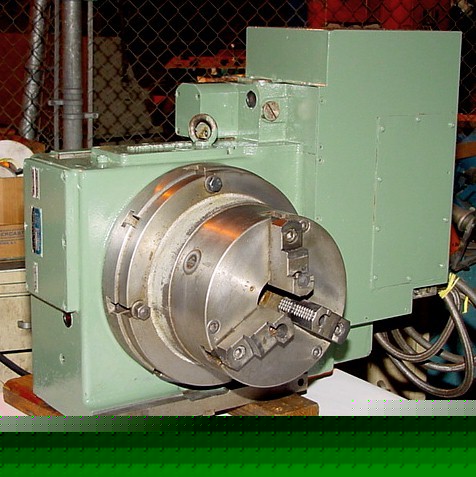

12" W or Dia Tsudakoma RNCM-300R 4th AXIS CNC ROTARY TABLE, w/OKUMA SERVO
TSUDAKOMA RNCM-300R 12" HORZ/VERT ROTARY TABLE
WITH SLIGHTLY SMALLER 3 JAW CHUCK THAT CAN BE REMOVED
Table diameter ...................... 12.5
Vertical center height............... 8.27
Table Height......................... 6.6
Center Hole........................... 32 mm
Width of T-slots...................... 14mm
Width of guide blocks................. 1-1/l6
Speed reduction ratio................. 1/180
Minimal input increment.............. .001 degree revolving speed.........83 rpm (Motor 1500 rpm)
Allowance load, horz................. 660 lbs
SANYO-DENKI CN-1000T-10 w/OKUMA D6 ENCODER
Was used with an Okuma VMC w/OSP-5000M Control
Of course the servo can be changed for other
