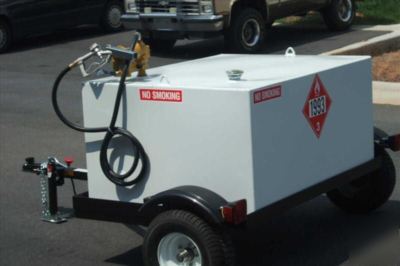

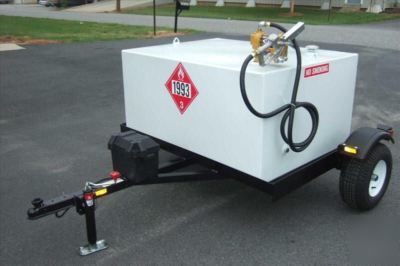

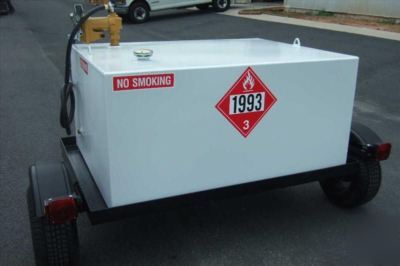

Fuel servicing tank refueling trailer - coml - 390 gal

Refueling Center - Commercial/Industrial
390 Gallon Capacity - For Use with Jet Fuel, Gasoline, Diesel Fuel, BioDiesel and more - Features 12V DC 13 GPM Pump - Mounted on 3,700 Lb Capacity Two Wheel Trailer
* Industrial/Commercial 390 Gallon Portable Refueling Center with 12V DC, 13 GPM Pump (upgradable to 20 GPM) - Use with Jet Fuel, Gasoline, Diesel Fuel, Bio-Diesel and more
* Suggested applications: Aviation, Marinas, Construction, Agriculture, Golf Courses, Fleet Service, Equipment Rental Companies, BioDiesel Processing and Emergency Standby Fuel Supplies
* Our portable refueling centers are D.O.T. , FMCSR and NHTSA approved for use anywhere in the U.S.A. (Note: Code Placards Required for Compliance)
* Tank Capacity: 390 Gallons
* Tank Material: 12 gauge steel - single wall
* Fuel Site Gauge: Located on side of tank
* Fuel Cap & Base: PreVent (Relieves Positive and Negative pressures)
* Tank Testing: Pressure tested for leaks and certified sound
* Baffle System: Exclusive full cavity baffle system insures complete inertia control of fuel
* Tank Style: Unique low profile box tank
* Tank Dimensions: 59" L x 45" W x 28" T
* Tank Color: Fully primed and painted white - Enamel Paint (trailer is black)
* Pump: 12 Volt DC pump dispenses up to 13 GPM (57 LPM) - Pump weighs less than 27 pounds (12.2 kg) with hose and nozzle. Very light draw on the DC power source
* Motor: 1/4 Hp - Explosion-proof motor with permanant magnet and ball bearings
* Motor Listings: UL & CUL (Canada UL) listed
* Heavy duty switch, thermal overload protection and junction box
* Hose: 10 Ft with static ground wire
* Corrosion proof adjustable section pipe
* Lockable pump handle (must be locked for transport)
* Wiring from trailer plug to battery, to the pump included
* Battery is charged off the tow vehicles charging system
* Tow vehicle must have a wire lead from alternator to the 6 pin plug at the back of the truck for the charging feature to work (any trailer repair center can do this for you)
* Optional Items: Model VIR1257621-1 - 20 Ft Fuel Hose Add On / Model VIR1257621-2 - Resetable Digital Fuel Flow Meter / Model VIR1257621-3 - Automatic Nozzle / Model VIR1257621-4 - 20 GPM Pump / Model VIR1257621-5 - Decals / Model VIR1257621-6 - Deluxe Wheel Lock (shown in photo below) / Model VIR1257621-7 - Spare Tire & Wheel Mounted on Trailer / Model VIR1257621-8 - Inline AquaSorb Filter & Hardware

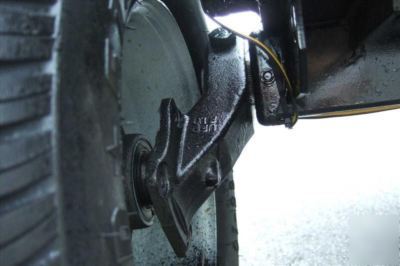

* Axles: Factory built and engineered Torflex axles
* Bearings: Stainless steel bearing seals, for longer more trouble free maintenance intervals
* Hubs: Pressurized hub. Service indicator on hub indicates when you need to lube the bearings. Hubs are made in the U.S.A. by a domestic manufacturer
Spindles: Adjustable - You can adjust degree of the torsion spindles to give you more or less ground clearance. Fast Lube spindles, for easy fast lubrication of both the inner and outer bearings
Tongue Jack: Swing up style - speeds up dropping and hooking up. Saves the jack from dragging damage
Tires: Heavy Duty Special Use tires - 205mm x 65mm x 8" wide and 22" tall. 10 ply "E" rated low profile tires. Each tire is rated at 1,650 Lbs each. A total of 3300 lbs rating on the axle. 5 on 4.5 wheels and hubs. Spare available as an option (see above under Optional Items)
GVWR Rated to tow up to 3,700 Lbs over the axle
White painted Heavy Duty all steel wheels
Welded cross bracing (much safer than bolted cross members)
Trailer Lighting: 5 Function - stop, turn, tail light, illuminated side marker and illuminated license plate. Replaceable lens covers. Lights are high mounted to protect from damage
Coupler: 2 inch ball coupler
Fenders: Solid black plastic - will not bend or corrode - scratches and scuffs still show black
Documentation: Manufacturers Certificate of Origin and assigned and attached VIN number
All serviceable parts are available directly through us

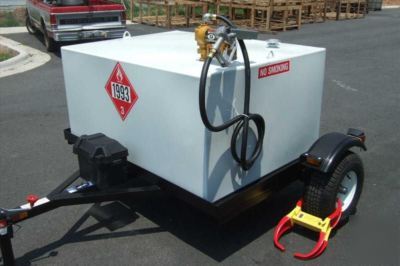

Wheel lock shown in photo below is optional and is shown for display purposes only - wheel lock is not included with a standard unit purchase
Overall Dimensions: 8.25' L x 4.75' W x 3.33' T
Please allow 14-28 days for delivery
5 Year Warranty on Axle Bearings and Seals
1 Year Manufacturer's Warranty (Includes Parts & Labor)
