Bridgeport mill milling 2HP dro 3AXIS feeds kurt draw

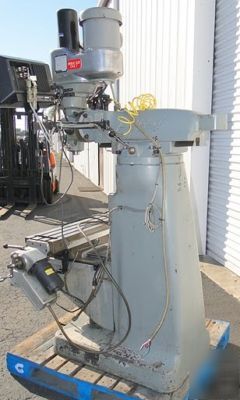

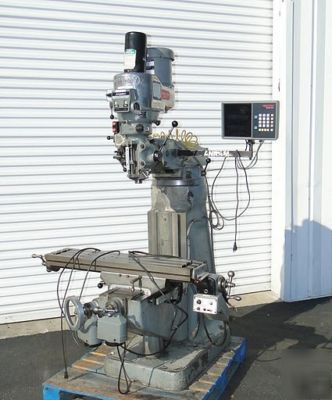

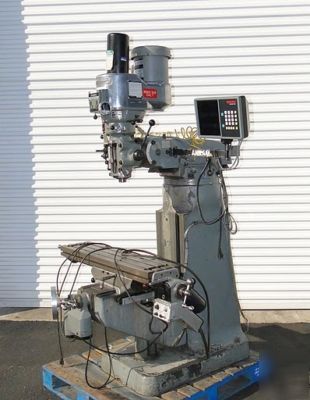

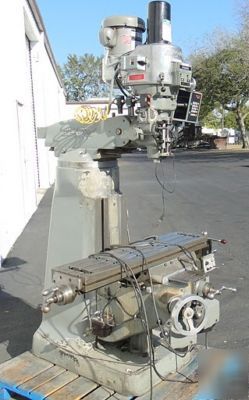

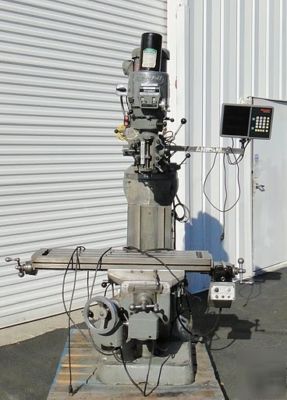

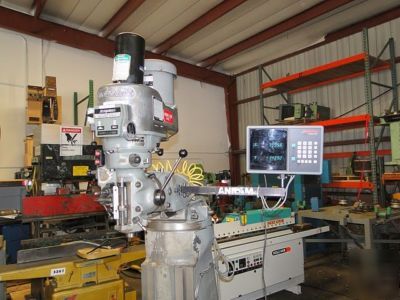

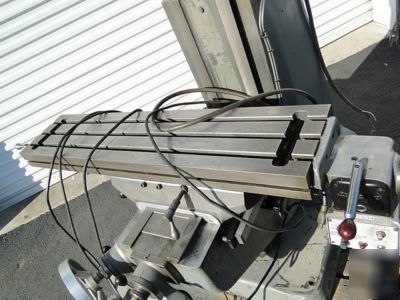

* Bridgeport 2 hp vari speed head milling machine.
* bridgeport power feed on x axis.
* servo brand power feeds on y and knee.
* This machine is in excellent working order.
* Machine was used in tool room of a prosthetic manufactuer.
The following material was taken from the internet for reference about the above product. This information is to be used as an information reference and not as a guarantee by FabMasterD Machinery
9" X 42" BRIDGEPORT VERTICAL MILL
TABLE WORKING SURFACE................. 9" X 42"
NUMBER OF T-SLOTS..................... 3
RANGE: LONGITUDINAL (X)............... 26-1/2"
CROSS (Y)...................... 12"
VERTICAL, KNEE (Z)............. 16"
QUILL.......................... 5"
MAX/MIN DIST. SPINDLE NOSE TO TABLE... 18-1/2"/ 2-1/2"
MAX/MIN DIST., CENTERLINE OF SPINDLE
TO FACE OF COLUMN.................... 18-3/4"/ 6-3/4"
RAM TRAVEL............................ 12"
HEAD TILT, LEFT AND RIGHT............. 45 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY.... 45 DEGREES
(3) POWER QUILL FEEDS................. .0015, .003, .006
INFINITELY VARIABLE SPINDLE SPEEDS,
TWO RANGES........................... 60-500 RPM
SPINDLE TAPER......................... R-8
MAXIMUM COLLET CAPACITY............... 3/4"
Winner must make contact with in 3 days.
