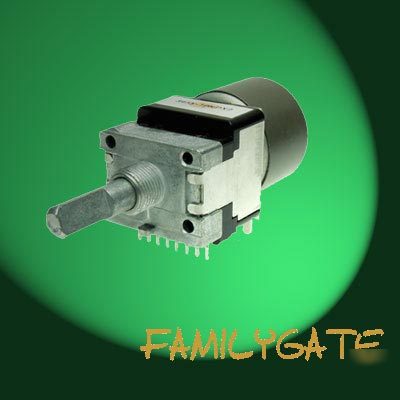

Alps dual motorized potentiometer RK16812MG 10K o 100K
ALPS Japan RK16812MG dual-HighEnd
motorized Potentiometer logarithmic OR linear
The Series RK168... MG so much as the Series RK271... MC belongs to the
Top Motor driven Potentiometer from ALPS
This Series was developed to be used in Hifi/HighEnd Preamplifiers on which a little room is available but to be attached importance to the maximum quality.
By the very compact 8 pin inline construction, with which two resistance values are mounted at a level, the potentiometer (with motor!!) reaches only 43-mm deep.
You can carry out the adjustment by hand as well as electrically with the motor.
Naturally also here this tough, audiophile rotary feeling (" like a spoon in the honey glass ")
Soundwise all expectations are fully fulfilled with this potentiometer
These professional potentiometers distinguish themselves especially by:
* Very compact, rectangular design 25x23x43mm (incl. motor).
* Totally dust protectedt - all circuit points are cast-in!
* (Only for logarithmic:) Logarithmic D-characteristic line for volume equality also with the smallest level!
* Axially fited DC motor with slipping clutch for an operational voltage form 4-6 volts.
* Motor voltage admission 4.5VDC = 100mA, at plot 150mA.
* Triply slider per channel off special contact material.
* Synchronisation failure max. 2dB with 150 rotation angle.
* Tough, audiophiles rotary feeling.
