Agilent/hp DSO80804B 4 channel 8 ghz oscilloscope

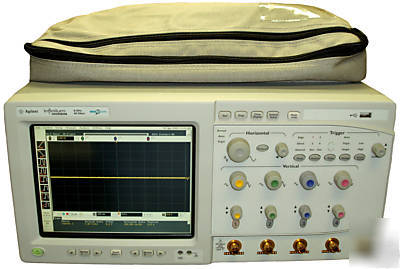

Agilent/HP DSO80804B 4 Channel 8 GHz Oscilloscope
* 001 2-M (2 channels), 1-M (4 channels) memory upgrade 64 M (2 channels at 4 GSa/s) or 32 M (4 channels 2 GSa/s)
* 003 High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
* 004 EZJIT Plus jitter analysis software
* 007 Low-speed serial data analysis for I2C/SPI
* 009 InfiniiScan event identification software
* N5394A DVI compliance
With the superior signal integrity, probing and application software selection of Agilent Technologies Infiniium 80804B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins. The signal integrity advantages of Agilent s Infiniium 80804B Series Scopes and InfiniiMax probing system include the industry s lowest noise floor, lowest jitter measurement floor, lowest trigger jitter and flattest frequency response. These foundational capabilities are crucial for achieving accurate and repeatable measurements. These superior signal integrity capabilities come from Agilent s RF design experience, proprietary packaging technologies and unique CMOS ADC architecture. Superior signal integrity maximizes your design margins by not wasting any measurement accuracy due to poor noise, jitter or frequency response of the scope or probing system.
* Analog bandwidth (-3 dB): 8 GHz
* Real-time bandwidth on 2 channels and 40 GSa/s: 8 GHz
* Equivalent-time bandwidth on 4 channels with 1.56 ps point spacing: 8 GHz
* Real-time bandwidth on 4 channels at 20 GSa/s: 8 GHz
* Industry s lowest scope noise floor
* Industry s lowest jitter floor
* Industry s lowest trigger jitter
* Industry s flatest frequency response
* Industry s leading hardware sensitivity
* Industry s only bandwidth upgradeable series
