> 4 romex 250FT 14/2
4 romex 250FT 14/2

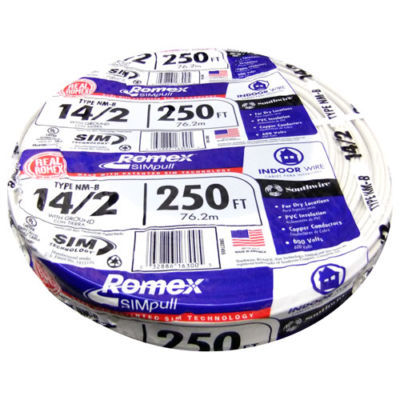

The listing is for a box of 4 romex 250ft 14/2 wires
Non-Metallic Sheathed Romex Cable Romex
* American Insulated Wire Corp
* Cerro Wire & Cable CO. Inc
* Colonial Wire & Cable (NJ)
* United Copper Industries. INC
* Romex Type NM-B Cable may be used for both exposed and concealed work in normally dry locations at temparatures not to exceed 90 celcius degrees as specified in the National Electrical Code
* NM-B Cable is primarily used in residential wiring as branch circuits for outlets, switches and other loasds
* NM-B Cable may be run in air voids of masonry block or tile walls where such walls are not wet or danp locations
* Voltage rating for NM-B Cable is 600 volts
* Underwriters Laboratories Standards UL-83, UL-719
* Federal Specification A-A-59544
* National Electrical Code NFPA70
* NM-B Cable is manufactured as 2, 3 or 4 conductor cable, with a ground wire
* Copper conductors are annealed (soft) copper
* Stranded conductors are compressed stranded
* Conductor insulation is 90 celcius degrees-rated polyvinyl chloride (PVC), nylon jacketed
* NM-B Cable is designed for easier pulling, resulting in easier installation
* The cable jacket is color-coded for quick size identification
White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG and Black - 8 AWG / 6 AWG
NM-B (Non-Metallic Sheathed Romex Cable)
Approximate Net Weight (lbs./1000FT.)
