Superior electric slo syn rotary table (C233)
Superior Electric SLO SYN Rotary Table (C233)

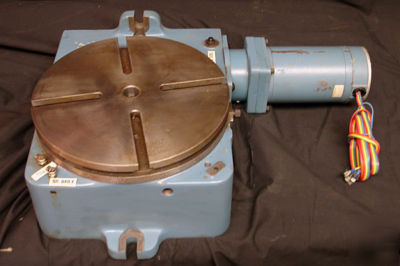

One Superior Electric Slo Syn Rotary Table
Here's what the Manufacturer has to say on the subject
SLO-SYN Rotary Tables are valuable accessories for controlling angular location in automated operations. The tables are driven by SLO-SYN Stepping Motors and can be controlled by SLO-SYN Numerical Controls or Preset Indexers. Positioning resolution is .01 . The tables can be mounted either horozontally or vertically. Applications include drilling, reaming, tapping, milling, shaping, grinding, assembling, packaging, inspection and other applications where precise angular location of the work is necessary.
Accuracy: Within 36 seconds of true position
Maximum Positioning Speed: 10 per second (with numerical control)
Table Mounting: Horozontal or Vertical
Rotating and Static Flatness: within .0005"
Squareness of Table Surface with Vertical Mounting Surface: within .002"
Maximum Load (centrally mounted):
One of the 4 slots cut in the table surface.
