Siemens simatic multi panel mp 277 6AV6 643-0CD01-1AX0

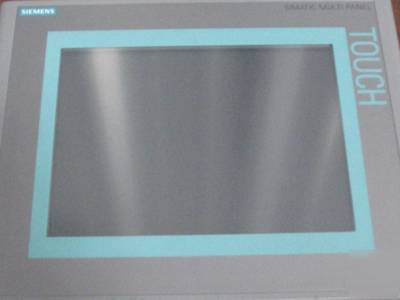

SIEMENS SIMATIC MULTI-PANEL MP 277 10" TOUCH - 6AV6 643-0CD01-1AX0
Like operator panels, Multi Panels are used for machine operation and monitoring.
Content of message buffer is retained even when panel is disconnected, without batteries
Their functions can be expanded by the installation of additional Windows CE applications (Multi Panel and Panel options)
SIMATIC MP 277 devices on the basis of Windows CE combine the rugged construction of Operator Panels with the flexibility of PCs
Compact design with low mounting depth
The mounting dimensions of the 10" devices correspond to those of their predecessor
The front is resistant to various oils, greases and standard detergents
Degree of protection IP65/NEMA 4x/NEMA 12 (front) or IP20 (rear)
Plug-type terminals for a 24 V DC power supply
- RS 485/RS 422 interface for process connections (MPI, PROFIBUS DP up to 12 Mbit/s)
- USB for mouse, keyboard, printer, barcode reader and downloading/uploading the configuration
- Ethernet (TCP/IP) for exchanging data with a higher-level PC, connection of a network printer and downloading/uploading the configuration; a control link to SIMATIC S7 is possible
