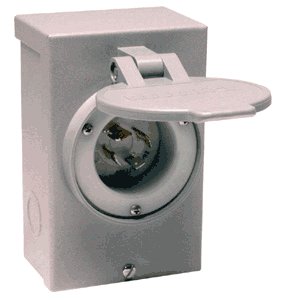

Reliance PB30 120/240 volt 30 amp power inlet box
Reliance PB30 120/240 Volt 30 Amp Power Inlet Box
Reliance PB30 30 Amp NEMA 3RPower Inlet Box
The rain-tight NEMA 3R power inlet box isdesigned for the use with the Pro/Tran transfer switches and Reliance Panel/Linkmanual transfer panels and generator-ready load centers. The power inlet box maybe installed indoors, or outdoors in an open area where the generator is beingused. Using one of the four combination 1/2-inch and 3/4-inch knockouts (one oneach side, bottom and back) the power inlet box can be wired directly to thetransfer switch or panel. The exclusive patented design provides generous wiringspace and facilitates rough-in. The PR Series includes circuit breakers thatmatch the amperage of the power inlet. UL listed.
Model Description: Power Inlet Box
Max. Generator Input: 30A@125/250VAC
Dimensions H x W x D (inches): 6 x 4 x 2.63
Connector Required: CS6364
* Reliance PB30 Power Inlet Box
