New 1-1/2" cash acme e-3 pressure regulating valve E3

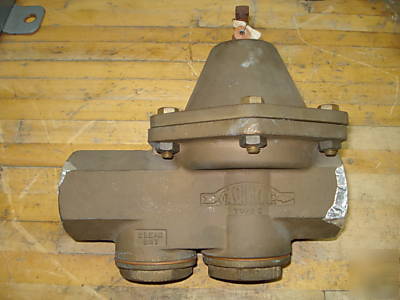

NEW 1-1/2" Cash Acme E-3 Pressure Regulating Valve E3
SELLS FOR $1,200 ON THE INTERNET!!!!
http:// /_images/pdf_downloads/products/pressure_regulators/e_3/E3_Spec.pdf
http:// /_images/pdf_downloads/products/pressure_regulators/e_3/E3_Sales.pdf
*Outlet pressure range . . . . . . . . 20-70 psi
Maximum temperature . . . . . . . . 180
Maximum initial pressure . . . . . . 300 psi
Service . . . . . . . . . . . . . . . . . . . . Air and water
*Other pressure ranges are available, please contact the factory.
The Cash Acme E-3 Pressure Reducing and Regulating Valve automatically
reduces a high inlet pressure to a lower delivery pressure and maintains the
lower pressure within acceptable limits.
The Cash Acme E Series 3 provides substantially higher capacity and closer
regulation for more demanding and higher quality installations.
Automatically reduces a high inlet pressure to a lower delivery pressure:
Maintains a lower pressure within reasonably close limits.
Specify and install with confidence!
Solves problems of water hammer, pipe noise and rapid wearing of fixtures, faucets and valves:
Longer life of the valve saves money and time!
Listed by ASSE 1003 and IAPMO:
Inspector friendly, peace of mind!
A pressure reducing valve shall be installed to deliver water at a controlled pressure.
The valve shall be ASSE 1003 and IAPMO listed. The valve shall be a bronze body with a maximum inlet pressure of 300 psi.
The valve shall have a separate cleanout plug that houses a Monel strainer screen.
The valve shall be a yoke-type design with a buna seat disc and a stainless steel body seat.
The valve shall be a Acme E-3 Pressure Regulating Valve.
The valve shall be a yoke-type design with a buna seat disc and a stainless steel body seat. The valve shall be a
Body: . . . . . . . . . . . . . . . . . . . . . Bronze
Body Seat: . . . . . . . . . . . . . . . . . Stainless steel
Spring Chamber: . . . . . . . . . . . . Aluminum
Seat Disc: . . . . . . . . . . . . . . . . . . Buna-N
Diaphragm:. . . . . . . . . . . . . . . . . EP/nylon
Strainer Screen: . . . . . . . . . . . . . Monel
Cleanout Plug. . . . . . . . . . . . . . . Bronze
Adjustment Spring . . . . . . . . . . . Steel (zinc plated)
Threaded (NPT) . . . . . . . . . . . . . 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2
Cash Acme E-3 Pressure Regulator is certified to ASSE 1003 and is listed by ASSE
