Nsk nakanishi 90° spindle ra-100 0.897" nc / cnc lathe

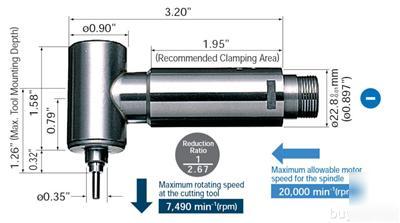

Nsk Nakanishi 90 Spindle RA-100 0.897" NC / CNC Lathe
-RA-100 Spindle; Collet 1/8" (CH8-3.175): 1 pc. Wrench (7 x 5.5) : 1 pc. ,(8 x 5) : 1 pc., (20 x 24): 1 pc.
This spindle is capable of working on corners difficult to work with straight type, drilling on side face and, slitting of aluminum, brass, etc. with the use of 1.18"( 30 mm) Metal Saw.
Maximum rotating speed at the cutting tool 7,490 min-1(rpm)
Standard Size Collet (CH8-3.175) 1/8"
The RA-100 is assembled with ultra-precision steel bearings and is designed to withstand continuous operation at up to 20,000 min-1(rpm).
