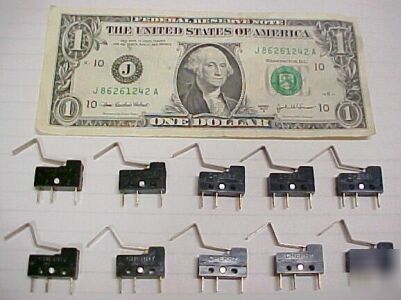

Lot 10 cherry sub-miniature microswitch micro switches
These were purchased at an industrial parts liquidation earlier this year. They were brand new in the original factory boxes until we rebagged them. These would be excellent for applications where size and weight is a factor. We do not have precision equipment for measuring the actuation force but it is less than one ounce. The terminals show some light tarnish because they are plated with pure silver. That's just what silver does, and it will not affect the operation.
Switch body length (excluding actuator lever): .785"
Overall width (including actuator lever and terminals): 1.142"
Switch body width (excluding actuator lever and terminals): .484"
Mounting holes: .087" spaced .365" OC (on centers)
Temperature Rating: -40C to +85C
Actuating Button: Thermoplastic Acetal
Terminals: Silver-Plated Commercial Bronze
Moving Blade: Beryllium Copper
Auxiliary Actuator: Cold Rolled Steel (Nickel-Plated)
(27 to 42) lots: Three pounds
(43 to 57) lots: Four pounds
(58 to 74) lots: Five pounds
