Hp agilent 466A ac amplifier 20/40 db

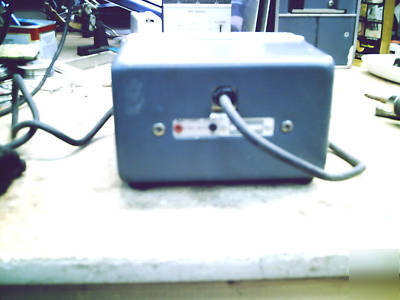

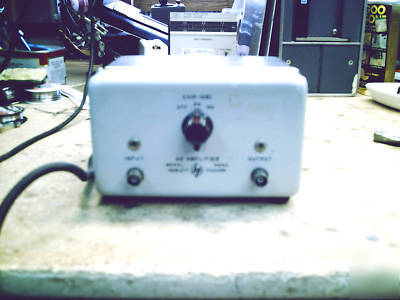

Hewlett-Packard : Model 466A AC Amplifier
This is a used but well- taken-care-of piece of equipment. It is a light portable instrument for the field. It will also be a great addition to your bench instrument array. It is a general purpose transistor based instrument amplifier with standard gains of 20 and 40 dB +/- 0.2db at 1KHZ. It boasts of less than a 1%, 10 HZ to 100 KHZ fluctuation and a frequency response of +/- 0.5 dB 10 HZ to 1 MHZ, a 1.5 V rms output across 1500 Ohms, a noise factor of 75 Micro-Volts rms reference input, and an input impedance 1 M Ohm with a 20 Pico-Farad shunt in the circuit.
This piece has the battery option installed.This piece of electronic equipment may require calibration.
