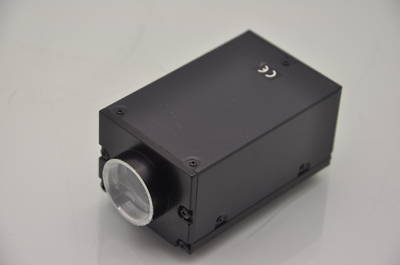

Toshiba teli CSB4000F-10 4.1 mp cmos digital camera
Toshiba Teli CSB4000F-10 4.1 MP CMOS Digital Camera
Total pixel: 4,190,000 CMOS
Small and light weight body (54 x 43 x 59 mm, approx. 160g)
Image sensor: CMOS Image sensor
Total pixel: 2048(H) x 2048(V)
Effective pixel: 2008(H) x 2044(V)
Frame rate: 7.14fps (Global shutter, Under all pixel's read out mode exposure 60micro sec)
Sensitivity Standard: 2000 lx (F4 3100K exposure time 16msec)
Interface: IEEE 1394 Std.1394a-2000(Transmission:400Mbps)
Protocol: Conforms to IIDC 1394-based Digital Camera Specification Ver1.3
Video format: Format 7 / Special Format (in WOI)
Input signal: TRG (Shutter trigger)
Electronic shutter: User-defined shutter speed is selectable through IEEE1394 communication command ( From 60 micro sec through 1sec)
RTS: Shutter speed preset or shutter speed control by pulse width
Power supply: Supply from IEEE1394 connector (From DC8V through DC30V)
Power consumption: Approx. 2.6W (in DC12V)
(The performance of CSB4000F may cause a deterioration of resolution or an image vignette depending on the lens.)
External: dimension 54(W) x 43(H) x 94.5(D)mm
Various Specs: CE marking (under preparation for qualifying)
CSB4000-F10 Product Specification
CSB4000-F10 Instruction Manual
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The Toshiba CSB4000-F10 Camera is sold guaranteed with a 7 day Right Of Return.
