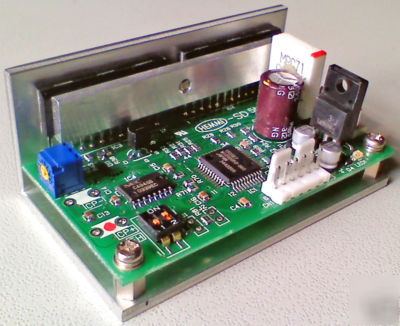

Cnc japan 5 phase stepper motor drive controller board
Cnc Japan 5 phase Stepper Drive Tested
Made by TECHNO DRIVE CO LTD IN JAPAN
Run current can adjust by potentiometers
Ideal for 42mm to 86mm 5 wires or 10 wires Stepper motor
Pulse and Dir input OR CW & CCW Pulse
500 pulse or 1000 pulse per rev
5 phase performance is much better than 2 phase motor
External dimensions (Unit: mm)
Dimensions do not include protruding items such as screws.
Explanation of function selector switch
Note 1: The numbers on CN1 and CN2 should be those shown in the diagram or on the connectors. Do not use the numbers on the printed circuit board.
Note 2: Pins 6 to 7 and 8 to 9 are connected internally on CN2.
