Acti cam-5220N CAM5220N ip network rohs poe camera
Manufacturer: ACTi Model/Part Number: CAM-5220N

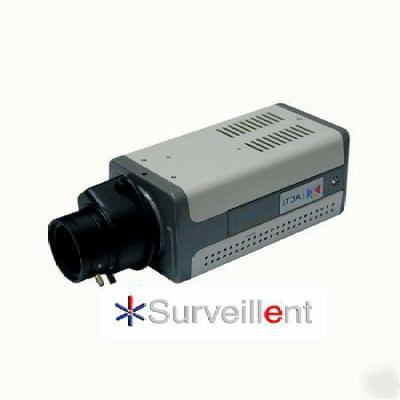

ACTi CAM-5220N CAM5220N IP Network RoHS PoE Camera
The CAM-5200 series (which includes the CAM-5200N, CAM5201N, CAM-5220N and CAM-5221N) MPEG-4 IP cameras adopts MPEG-4 Advanced Simple Profile (ASP) compliant compression technology to perform full D1 (4 CIF) resolution. It utilizes the premium 1/3" SONY color CCD sensor, and has horizontal resolution of 480 TV lines. The real-time image transmission is 30 fps (720 x 480 pixels, NTSC) and 25 fps (720 x 576 pixels, PAL).
With the LAN and WAN ports built-in, the CAM-5200 series applies QoS (Quality of Service, IEEE 802.1Q) technology to fully utilize the network bandwidth. CAM-5200 series supports automatic (or manual) frame rate control for concurrent video streams accessing at different network bandwidth. With advanced MPEG-4 ASP compliant video compression and QoS-enabled streaming, the CAM-5200 series delivers smooth analog-video like transmission over LAN or WAN to reach true remote video surveillance goal. The CAM-5200 series not only supports DDNS, but also has a built-in web server to enable authorized users to do live viewing and adjust the camera setting via remote web browsers.
In addition to support of the DC and a video auto iris lens, the CAM-5200 series also has DIP-switch controlled functions including backlight compensation, auto white balance, auto gain control and flickerless for different application conditions. With Super Gain Control mechanism, it will switch to color and monochrome picture automatically in the CAM-5220 model specifically.
1/3" SONY SuperHAD / EXviewHAD CCD
Day and night function with IR cut-filter switching mechanism (CAM-5220N)
One-way audio supported (built-in microphone)
PoE - Power Over Ethernet (IEEE 802.3af) supported (CAM-5201N/CAM-5221N)
