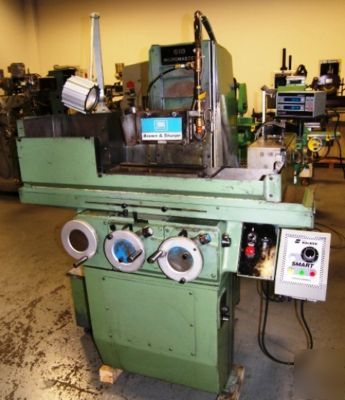

6" x 18" brown & sharpe hydraulic surface grinder '76
Preowned 6" x 18" BROWN & SHARPE Hydraulic Surface Grinder, Model: Series II Micromaster, S/N: 523-6181-7063 (New 1976)
Width and length of work ground
Height of work ground with 8" diameter wheel
Continuous hydraulic transverse of 10 I.P.M.
Continous hydraulic transverse of 12 F.P.M.
provided for rapid positioning of wheel
Cross feed and vertical feed handwheels
Fine feed knob adjacent to vertical and cross feed
handwheel graduated to read to
8" diameter x 1-1/4" hole x 1/2" thick
Hydraulically actuated longitudinal and cross feeds
Column-type design: Cross feed is achieved by hydraulically actuated movement of
6" x 18" O.S WALKER fine division electromagnetic chuck with control allowing for
automatic release, full, variable, and residual holding
Fine-feed knobs (graduated to 0.0001") to vertical and cross feed handwheels
External coolant pump and tank with table splash guards
1 H.P. 3/60/230-460 volt hydraulic pump motor
1 H.P. 3/60/230-460 volt cartridge-type spindle with oriflex drive
Machine is wired for 460 volt operation.
Very Good. We purchased this grinder surplus to the needs of Eastman Kodak.
