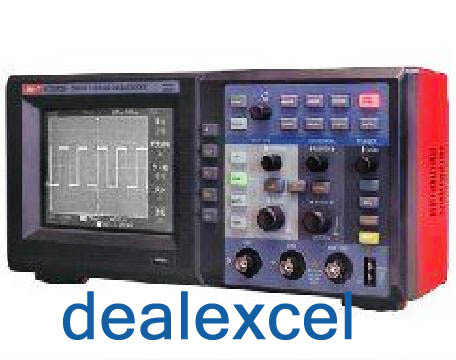

UT2062B digital storage oscilloscope 60MHZ w/usb
UT2062B Digital Storage Oscilloscope 60MHZ w/USB
N-th power of 2, 2 ~ 256 times optional.
DC exchange, grounded (DC, AC, GND)
1 2% , and 24 3pF parallel
Set the probe attenuation coefficient
400V (DC + AC peak, 1 input impedance) (10:1 probe attenuation)
Inter-channel time delay (typical)
5ns/div ~ 50s/div ,1-2-5 binary (60MHz \ 80MHz \ 100MHz)
Sampling rate and delay time accuracy
100ppm (any time interval 1ms)
Measurement precision (full bandwidth)
Single: (1 sampling interval +100 ppm reading +0.6 ns)> 16 Ge average: (1 sampling interval +100 ppm reading +0.4 ns)
Analog-digital converter (A / D)
8-bit resolution, two-channel simultaneous sampling
2mV/div ~ 5V/div (at input BNC)
Optional analog bandwidth constraints, the typical
Low-frequency response (AC-coupled,-3dB)
Rise time (typical of the BNC)
2mv/div, 5mv/div when the 4% (average of samples or sampling method);
10mv/div ~ 5v/div time: 3% (average sampling or sampling method)
DC Measurement Accuracy (average sampling mode))
Vertical displacement is zero, and N 16 Shi: (4% reading +0.1 div +1 mV); vertical deflection coefficient 5mV/div; N 16 Shi: [3% (reading + vertical displacement of the reading) + (1% vertical displacement of the reading)] +0.2 div) vertical deflection factor from 2mV/div to 200mV/div plus 2mV; vertical deflection coefficient 500mV/div to 5V/div plus 50mV.
Voltage difference ( V) measurement accuracy (average sampling method)
In the same settings and environmental conditions, based on a capture of 16 waveforms averaged waveform office after the voltage difference between two points ( V): (3% reading +0.05 div)
DC ~ 10MHz 0.5div 10MHz ~ limit bandwidth 1div
Away from the center of the screen 10div
Trigger level accuracy (typical) accuracy for 20ns rise and fall time of signal
(0.3div V / div) (from the center of the screen 4div range)
Normal mode / scan mode, pre-trigger / delay trigger, adjustable pre-trigger depth
Restrain the scope of interpretation
Set the level to 50% (typical)
Input signal frequency 50Hz operation under the conditions of
(Greater than, less than, equal to) is pulse-width, (greater than, less than, equal to) the negative pulse width
Signal format and line / field
Frequency (Video Trigger Type)
Supports standard NTSC and PAL formats, line number range is 1-525 (NTSC) and 1-625 (PAL)
Voltage difference between cursors ( V), the cursor between the time difference ( T), T the reciprocal of (Hz) (1/ T)
Waveform point voltage value and time value
Peak-Peak, amplitude, maximum, minimum, the top value, bottom value, average, RMS value, overshoot, pre-washed, frequency, period, rise time, fall time, positive pulse width, negative pulse width are duty cycle, negative duty cycle, delay 1 - "2 (rise), delay 1 -" 2 (decrease) Measurement
Add, subtract, multiply, divide, RP
10 waveforms, 10 types of settings
Hanning, Hamming, Blackman, Rectangular
Diagonal to 145 millimeters (5.7 inch) liquid crystal display
320 240 vertical pixels (monochrome)
Chinese Simplified, Chinese Traditional, English
About 3V, peak - peak load 1M
1 USB (D); 1 Ge USB (H); 1 Ge RS-232C
100-240VACRMS 45Hz to 440Hz, CAT II
Operation: 0 ~ +40
Non-operating: -20 ~ +60
+10 ~ +30 : 95% 5% RH,
+30 ~ +40 : 75% 5% RH
320mm (W) 150mm (high) 130mm (D)
