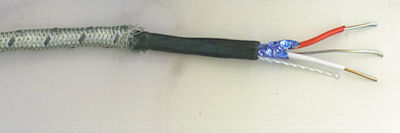

New omega ss braided 16 awg "j" thermocouple wire 125'
* Grade: Extension Wire Grade
* Alloy: Iron (Fe) / Constantan-Copper-Nickel (Cu-Ni)
* Comments (Bare Wire): Reducing, Vacuum, Inert. Limited Use in Oxidizing at High Temperatures. Not Recommended for Low Temperatures.
* EMF (mV) Over Max Tmp Range:
American Limits of Error ASTM E230-ANSI MC 96.1
* Standard Limits Tmp Rng: >0 to 750 C >32 to 1382 F
* Standard Limits Tolerance Value: 2.2 C or 0.75% 4.0 F or 0.75%
* Special Limits Tmp Rng: 0 to 750 C 32 to 1382 F
* Special Limits Tolerance Value: 1.1 C or 0.4% 2.0 F or 0.4%
OMEGACLAD is a three-part system composed of compacted MgO insulation, thermocouple wire and metal sheath. Four factors determine the useful service temperature for OMEGACLAD assemblies.
1. Range for the thermocouple wire
Maximum service temperature of insulation. In the case of MgO, this is in excess of 1650 C (3000 F)
* Properties of the sheath material
Diameter and construction of thermocouple assembly
Sheath Material Specifications:
* Material: 304 Stainless Steel
* All Items Have Been Tested And Are Working At The Time Of Sale Unless Otherwise Stated.
* All Items Sold Are Used Unless Stated Otherwise.
* All Used Items May Contain Scratches, Scuffs, Or Small Dents
* All Items Sold Contain An Identification Serial Number That Has Been Recorded By The Seller.
* Unless Otherwise Stated, No Software Is Included With Any Item.
* Seller Must Be Notified Within Five (5) DAYS of Receipt Of Any Non-Working Item.
* Seller Reserves The Right To Make The Final Determination Of Functionality.
* Warranty, If Any, Pertains To The Physical Operating Condition Of The Unit Only. Any Software That Is Installed Is Not Guaranteed To Be Working, Installable, Useable, Or Licensable.
* We Reserve the Right To Repair, Replace or Refund.
Refund And/Or Exchanges Will Be Determined On A Case By Case Basis.We Reserve the Right To Repair, Replace or Refund.
