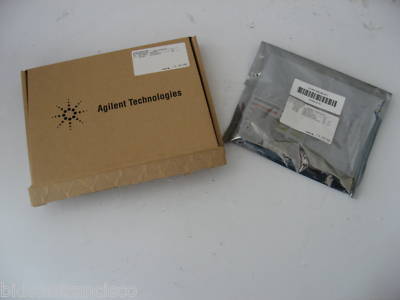

New agilent E5385A 100-pin probe kit, E5385 brand
* 34 channels: 32 single-ended data, 2 single-ended clock
* 1.5 pF equivalent load capacitance
* 1.5 Gb/s maximum data rate
* Measure signals with as little as 500 mV p-p signal amplitude
* Provides convenient, reliable connection to target through surface mount Samtec connector
* Surface mount connector is easy to incorporate into your design, Agilent number 1253-3620 or Samtec number ASP-65067-01
* Can be used with support shroud
For use with 16500A, 16500B, 16500C, 16700A, 16700B, 16702A, 16702B and 16900 series analyzers.
Analyzer cards that are compatiable are as follows: 1660 Series, 16550A, 16555, 16555A,16555D, 16556A, 16556D, 16557D, 1670, 1671,1672, 1673G, 16710, 16711, 16712A, 16715, 16716, 16717A, 16718, 16719A, 16740A, 16741A, 16742A, 16750A, 16750B, 16751A, 16751B, 16752A, 16752B. 16800 series, 16910A and 16911A. Others may be compatiable as long as the basic number is correct. There is other revisions of these boards available thatare not listed but have a different letter on the end of the number.
Logic Analyzer connection of 40 pin with 34 channels.
NOTE: A NUMBERED SECURITY TAG IS STRATEGICALLY PLACED ON ALL ITEMS TO PREVENT ANY FRAUD. Breaking, removal, or tampering of any Security Tags will void any DOA claims.
