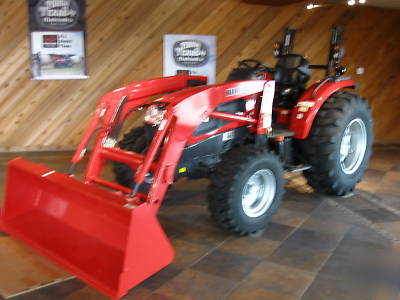

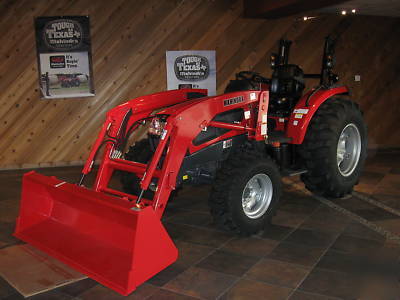

Mahindra 4035 4WD with front end loader
MAHINDRA LOADER PACKAGE 3L - 4035 4WD WITH LOADER HEAVY DUTY
The new Mahindra 35 Series, 35-40 HP Tractors are simple to operate, yet provide impressive power. With an overall weight of over 4,000 lbs, the 35 series are two of the heaviest and most rugged tractors in their category - outweighing comparable models from John Deere, New Holland & Kubota. The large-capacity engine, heavy-duty transmission, cast-iron chassis with high-lift capacity loader and 3-pt. hitch make these workhorses the perfect machines, for everything from basic chores around the farm to commercial landscaping.
- Reliable Mahindra engine: ultra-quiet, fuel-efficient, four-stroke direct-injection, water-cooled diesel conforms to EPA Tier IV norms.

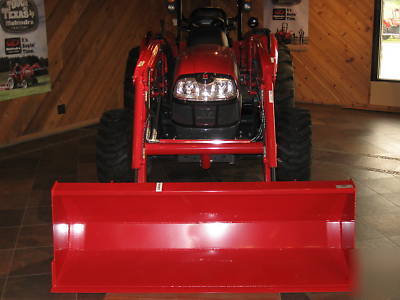

- Lift heavier loads with the powerful new ML120 Mahindra front loader.
- Enhanced styling for sleek integrated look with a curved boom loader to match.
- Optional Grille Guard with push/pull pin & lock flips down for easy access to engine.
- Standard industrial tires are widest in their class, for greater stability.
- Stronger, sturdier-built front axle on every Mahindra beats the competition's.
- Heavier, stronger built chassis makes our tractors heavier & safer with better traction.

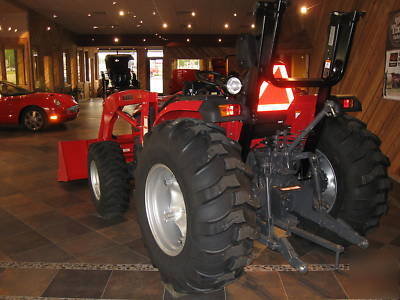

- Heavier-built, solid 3-point hitch linkage - compare it to others and literally see the difference.
- Thicker-guage reinforced metal fenders outshine and outlast the competitors' cheap plastic.
- Standard rear worklights for increased visibility on the job.

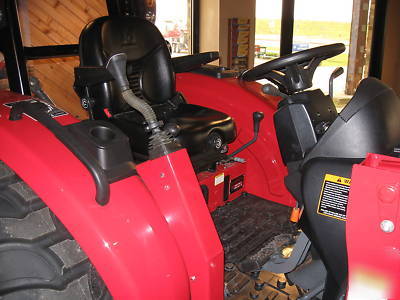

- Standard deluxe suspension seat with back angle and weight adjustment; retractable seat belt, arm rests and water drain.
- Standard hydrostatic power steering with tilt column.
- Clear view, electronic instrument panel with multi-function warning lights.
- Standard full SynchroMesh transmission with shuttle shift & 12 Forward & 12 Reverse speeds.
Type - Naturally aspirated direct injection diesel
Engine HP (kW) @ rpm 40 (29.8) @ 2800 rpm
Displacement cubic inch3 (cc) 115.4 (1892)
Battery Capacity 12 volt, 96 amps
Type Forward reverse synchro shuttle with full synchromesh
Number of Gears 12 forward, 12 reverse
Type Hydrostatic power with tiltable steering
Pump Output (gallons per minute) 5
Type Open-center full-live hydraulic with position & draft controls
3-Point Linkage Category 1 with
Rear Auxiliary Remote Valves Optional 2 spool with detent in raise, lower and float position. Kickback in raise and lower.
PTO RPM (engine rpm) 540 @ 2404
Overall Length Inches (mm) 123.8 (3144)
Overall Width Inches (mm) 73.7 (1872)
Turning Radius Min. Ft. (mts) 9.6 (2.94)
