Laser alignment dual slope laser BEACON5000 laser level

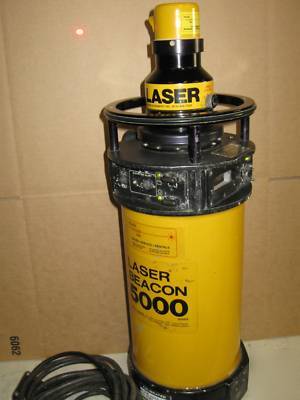

Laser Alignment Dual Slope Laser Beacon 5000 Laser Level
Automatic self leveling laser, serial number 505-4106.
Dual slope laser, A & B axis s 0% to 10% grade. Grade increments are .001%
Accuracy is +/- 3/32 at 100 feet.
Visible red 670nm laser beam. The beam output is bright and the spot quality is excellent. The factory beam output power spec is 2mW to 4mW (steady), this laser measured 3mW and will reach over a 1000 feet.
This laser can be laid down on its side and it will automatically level for 90 degree layout work. In the lay down mode, the grade switch (0% to 10% grade) and line control (left & right) switch become active. The rotating head can be removed and the laser can be used as a pipe laser. Lay down feet for 12 pipe are included.
Rotating head speed control is 0 to 12 rotations per second or 0 to 720 RPM, serial number 502-2144.
Elevation Alert switch is used to detect if laser has moved or shifted during operation and tell the user to re-check the setup.
The laser runs off of 12VDC from an automotive battery and has no internal batteries.
Sealed and nitrogen purged laser that is waterproof.

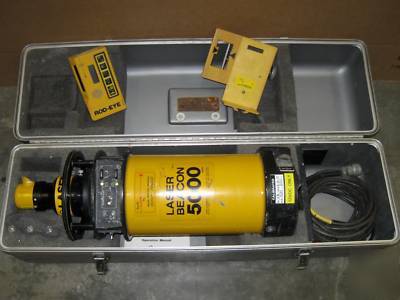

This laser is a complete kit ready for your project needs. Included is a 12VDC battery cable, operation manual, carry case, Laser Alignment Rod Eye 4 laser detector with a standard bracket.
This laser and all its accessories are used, in good condition and have been tested, serviced and calibrated by Pacific Laser & GPS Inc.
Pacific Laser & GPS Inc offers a 90 day warranty on this laser.
