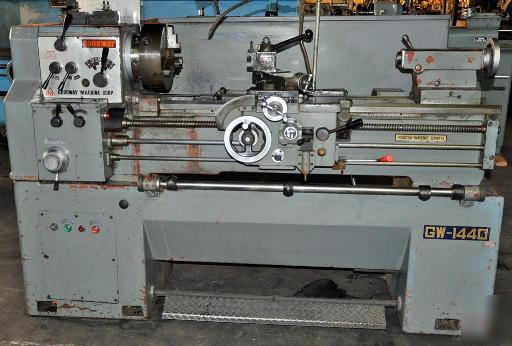

Goodway 14" x 40" precision lathe, heavy duty & tooled
GOODWAY PRECISION HIGH SPEED LATHE
SWING OVER CROSS SLIDE: 8 1/4"
WIDTH OF GAP: 6 1/2" (IN FRONT OF FACE PLATE)
SPINDLE BORE DIAMETER: 1 9/16"
TAPER OF CENTER IN SLEEVE MT #4
SPINDLE SPEED RANGE: (8) 85 TO 1,800 RPM
NUMBER OF CROSS AND LONGITUDINAL FEEDS 36
RANGE OF LONGITUDINAL FEEDS 0.0033" - 0.0455"/REV.
RANGE OF CROSS FEEDS 0.0028" - 0.0387"/REV.
MAXIMUM SPINDLE TRAVEL 4 11/16"
MAIN MOTOR: 5 HP, 220 VOLTS, 3 PHASE
NET WEIGHT - APPROXIMATE 2,870 LBS.
10 1/2" 3-JAW CHUCK WITH MASTER JAWS
ALORIS CXA TOOL POST AND (5) HOLDERS
LEVER CHANGE INCH/METRIC GEARBOX
View PDF Literature on the Goodway Model GW1440 Precision High Speed Lathe Here
ONE SHOT LUBE SYSTEM FOR APRON AND SLIDE WAY
SPINDLE IS SUPPORTED AT 3 POINTS BY PRECISION BEARINGS
HARDENED AND PRECISION GROUND GEARS IN HEADSTOCK
RIGID ONE PIECE CAST IRON BASE
