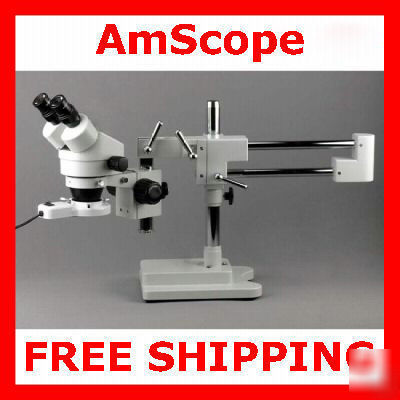

7X-45X binocular inspection boom microscope + ring lite
Brand Name: AmScope Model No: SM-4B-FRL Retail Value: $1,900
Just from looking at the eyepieces, you can tell the quality of the optical system of our microscopes. We offer you super widefield high-eyepoint WF10X/22 eyepieces (where 10X/22 means 10X magnification power and 22mm field of view) while other sellers give you only WF10X eyepieces (no specification on the field of view implies it is less than 18mm). Here is the difference as shown in the picture below - our competitors' eyepieces are on the left, and our eyepieces are on the right:
* 7-45X Continuous Zoom Magnification Range.
* Fluorescent Ring Light with Mounting Adapter Included.
* High Resolution with Great Flatness and Contrast.
* Erect Sharp Stereo Images over a SUPER Widefield of View.
* Versatile Boom Stand Covering Large Working Area.
* Double-Arm Design for 3-Degree Freedom.
* Able to Place Microscope Head Toward to Any Directions.
* Accurate Alignment Ensuring Fatigue-Free Long Time Viewing.
* Crystal Clear Original True Color Images.
* 45 Inclined Binocular Head with SUPER Widefield High-Eyepoint Eyepieces.
* 30mm WF10X/20 SUPER Widefield Eyepieces (see the difference in the above picture).
* Both Ocular-Tubes with Adjustable Diopter.
* Adjustable Interpupillary Distance.
* Full Optical Glass Elements.
* Precise Ground Glass Lenses.
* 4" Large Working Distance.
* Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel.
* Rugged Solid Cast Steel Base.
* All Metal Mechanical Components.
* Rubber Eye-guards Included.
* Excellent Five (5) Year Manufacturer Warranty.
* Head: 45 inclined 360 swiveling binocular
* Eyepieces: 30mm super widefield high-eyepoint WF10X/20
* Working Distance: 4" (100mm)
* Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
* Package: 2 (53 lbs & 12 lbs)
* One Binocular Stereo Zoom Head
* One Pair of SUPER Widefield 10X Eyepieces
* One Double-Arm Boom Stand with Focus Rack
* One Fluorescent Ring Light with Ring Mounting Adapter
Accessories listed below are compatible with above microscope. They can boost the microscope with extra features. Click on the pictures of the items you are interested in for detail or purchase.
15X Super Widefield Eyepieces for Exten-ding Magnification Power Up to 67.5X
2.0X Barlow Lens for Doubling Magnifi-cation Power
20 Watt Single Gooseneck Halogen Illuminator
Microscope Digital Cameras for PC Display
23mm Port Video Cameras For TV Display
