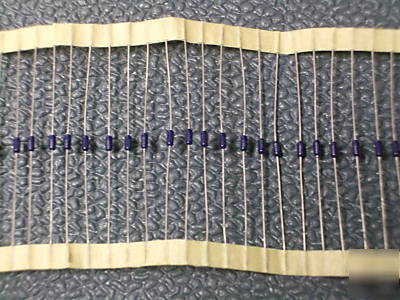

RLR05C2001GS (170PCS)
ELECTRICAL RESISTANCE - 2.000 KILOHMS
RESISTANCE TOLERANCE IN PERCENT - -2.000 TO 2.000
POWER DISSIPATION RATING IN WATTS - 0.125 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 70.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 150.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -100.0 TO 100.0 FIRST TEMP COEFFICIENT
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 150.0 TEMP RANGE OF FIRST TEMP COEFFICIENT
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 14 AXIAL TERMINAL EACH END
BODY DIAMETER - 0.058 INCHES MINIMUM AND 0.074 INCHES MAXIMUM
BODY LENGTH - 0.130 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
MIL-STD-1276 WIRE LEAD TYPE DESIGNATOR - C
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.001
TERMINAL LENGTH - 1.000 INCHES MINIMUM AND 1.625 INCHES MAXIMUM
SPECIAL FEATURES - NUCLEAR HARDNESS CRITICAL ITEMS
TEST DATA DOCUMENT - 81349-MIL-PRF-39017 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-PRF-39017/5 GOVERNMENT SPECIFICATION
NUCLEAR HARDNESS CRITICAL FEATURE - HARDENED
III UNPACKAGED UNIT WEIGHT - 0.3 GRAMS
(NON-CORE DATA) CUBIC MEASURE - 0.0008 CUBIC INCHES
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-PRF-39017/5
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RLR05C2001GS
