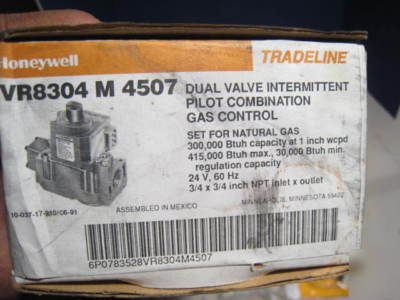

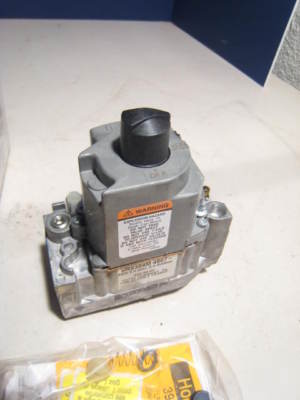

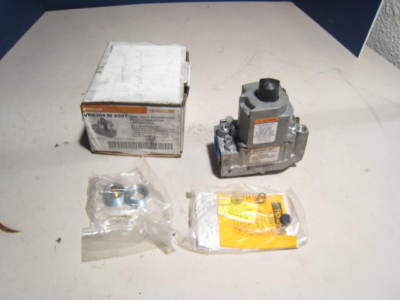

New honeywell VR8304M 4507 dual valve pilot gas control
* Model: Honeywell VR8304M4507
* Product Type: Dual intermittent pilot gas valve
* Product Dimensions: 2.69'' L x 4.06'' W x 5.38'' H
* Inlet/Outlet Size (in.): 3/4 in x 3/4 in.
* Body Pattern: Straight-through
* Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
* Pressure Ratings (psi): 1/2 psi
* Pressure Ratings (kPa): 3.5 kPa
* Pressure Regulator Setting (psi): 3.5 in wc
* Pressure Regulator Setting (kPa): 0.87 kPa
* Pilot Gas Outlet: Compression fitting for 1/4 in. quick-connect male terminals
* Electrical Ratings: 24 Vac
* Anticipator Setting: 0.7 A
* Temperature Range (F): -40 F - +175 F
* Temperature Range (C): -40 C - +79 C
* Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
* Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007
* Approvals, Canadian Gas Association: CGA design certified: File No. L2025007
* Approvals, Underwriters Laboratories Inc: UL component recognized
* Can be used with S86F, H; S860D; S8600F, H; S8610 and S90A, B control modules
* Includes 2 automatic valves
* Comes complete with a dual safety shutoff
* Can be used with ECO connector
