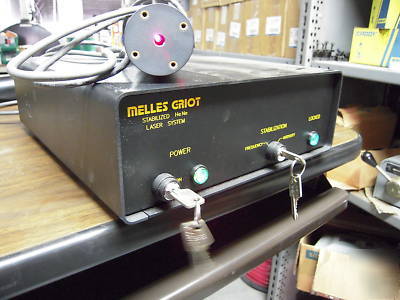

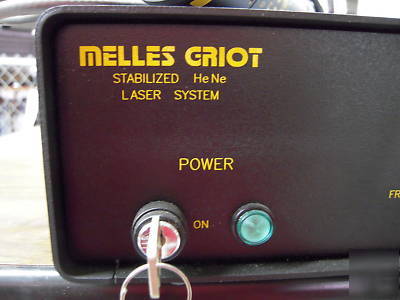

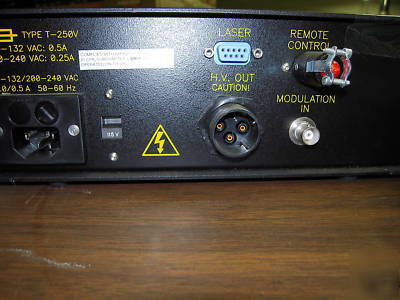

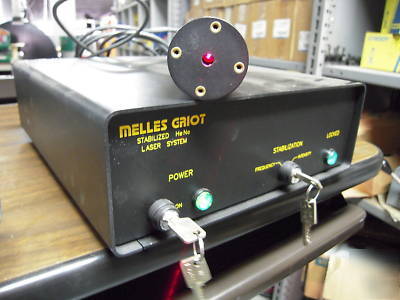

Melles griot 05-stp-901 laser system, helium neon lazer

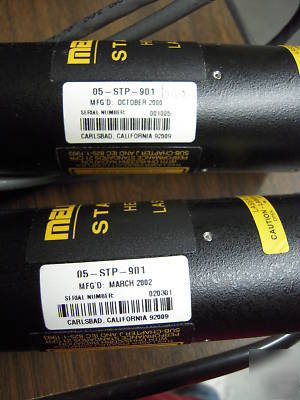

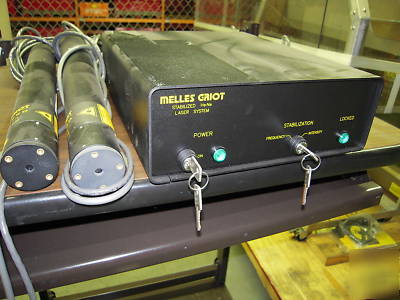

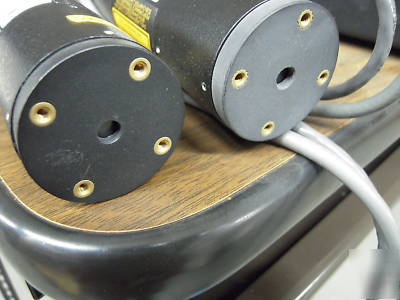

Melles Griot 05-STP-901 Laser System, Stabilized Helium Neon Laser System, with Power Supply and (2) Laser Probes, 115 Volt, 60 HZ.
* Beam Diameter (1/e2): 0.5 mm
* Far-Field Divergence (1/e2): 1.60 mrad
* Polarization: Linear, >1000
Stabilization Characteristics - Frequency Stabilized Mode
* Frequency Stability (1 min/1 hr/8 hr): +/-0.5/2.0/2.0 MHz
* Power Stability (1 min/1 hr/8 hr): 1.0% rms
* Frequency Offset: +/-150 MHz
* Temperature Dependence: 0.5 MHz/ C
Stabilization Characteristics - Intensity Stabilized Mode
* Frequency Stability (1 min/1 hr/8 hr): +/-3.0/5.0/5.0 MHz
* Power Stability (1 min/1 hr/8 hr): +/-0.1/0.2/0.2% rms
* Frequency Offset: +/-50 MHz
Stabilization Characteristics General
* Lock Temperature Range: 10 C to 30 C
