Haskris R100-bcs water cooled recirculating chiller

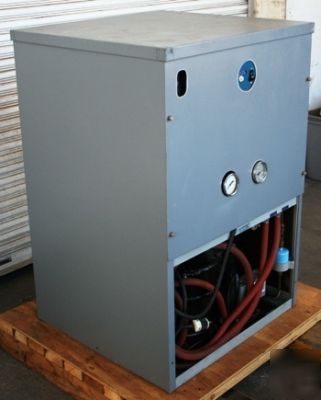

Haskris R100-BCS Water Cooled Recirculating Chiller w/ High Temp. Thermostat, Water-Cooled Condenser, & Flowswitch for X-Ray Systems
Note : Front grill is missing.
* Water Cooled NOT Air Cooled
* Cooling Capability: 55 - 70F
* Cooling Capacity: 3,850 Watts / 13,125BTU/hr
* Water Pump Capacity: 1.7GPM (6.4LPM)
* Reservoir Volume: 6 Gallons (23 Liters), usually takes a couple minutes to cool to set point, but no more than 10 minutes per the OEM Technican 07/24/09 MQF
* Power Requirements: 208/230V, 1 Phase, 60Hz
* Option B: High temperature thermostat to de-energize pump motor on a rise in water temperature.
* Option C: Water-cooled condenser with water saver control valve.
* Option S: Flow switch to provide protection if water flow fails for any reason.
