Blanchard rotary surface grinder, 20AD 36"

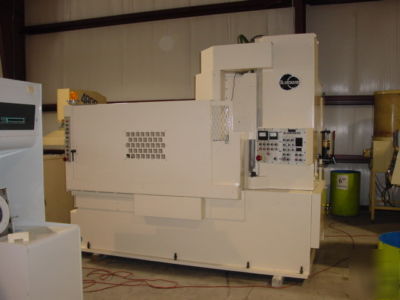

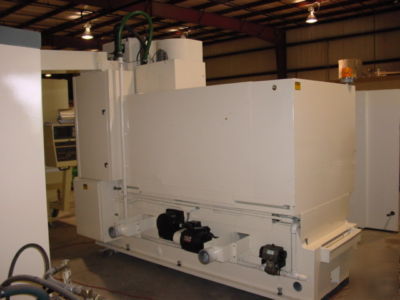

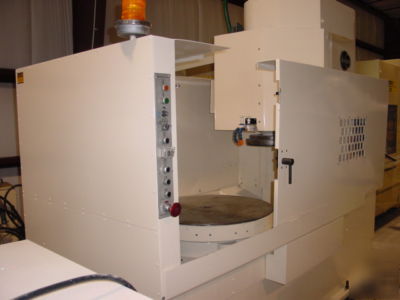

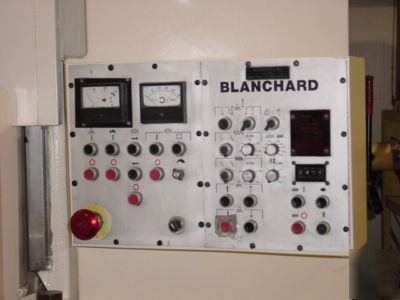

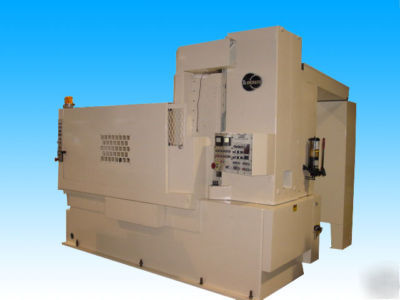

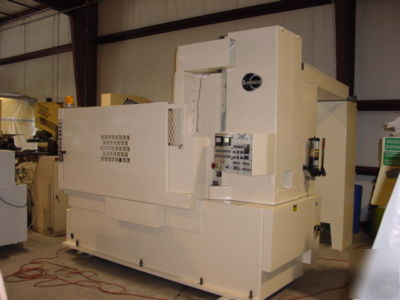

Blanchard 36" Rotary Surface Grinder
Swing Inside the Waterguards; 48"
Max. Diameter Ground: 36" W/ Diamond Wheel, 44" W/ Seg. Wheel
Chuck Rotational Speed Variable: 6 Thru 24 RPM
Grinding Wheel Size: Diamond 18", Standard 20"
Rapid Traverse Feed Rate 20 IPM
Wheel Head Jog Rate: .100 IPM (2.54mm per min.)
Wheel Head feeds W/ Fine Feed: .0001 to .100 IPM
Magnetic Chuck W/ 85% Chuck Life
Hand Operated Trabon Lube System
50 HP Main Spindle Motor (Option) In Place of 40 HP

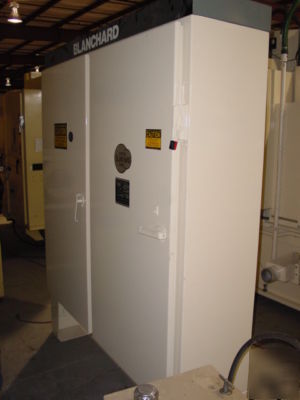

Dimensions: Electrical Cabinet: L-R 74" x 34" Wide x 105" High
Machine Dimensions: L-R 135" x 84" Wide x 66" Wide- 84" Wide w/ Coolant Shutes
