> Pomona electronics 3542-9 pin jack; white; 5 a; 1500 v

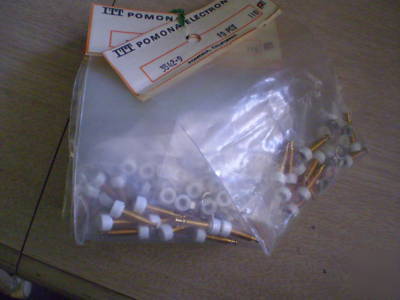

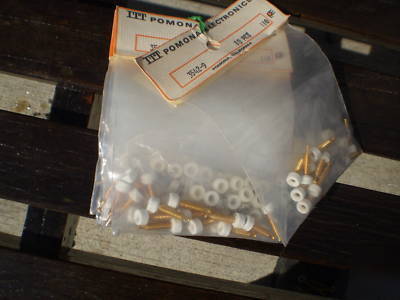

Pomona electronics 3542-9 pin jack; white; 5 a; 1500 v
Pin Jack; White; 5 A; 1500 V (RMS); Polycarbonate; Gold plated Brass; 115 degC
Pin jack for 0.080" pin plug. Mounts in panels to 6.35 mm (0.250) thick. Nickel-plated 8-32 hex nut and lockwasher included. Material: Pin jack body, brass. Spring:Beryllium copper. Finish: Pin jack, gold plated, Insulation: Polycarbonate. Rating: 1500 WVDC, 5 amps, +115 C (+239 F) max.
It s lockwasher #8 internal tooth is nickel plated steel.
