Joventa DAF2.06 electric spring return actuator 1EA
JOVENTA DAF2.06 ELECTRIC SPRING RETURN ACTUATOR 1EA

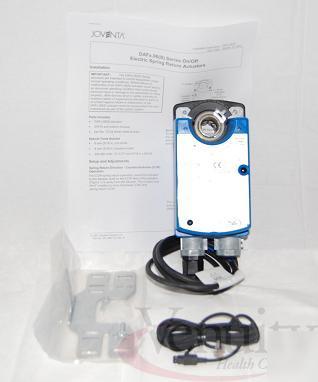

This listing is for 1 Joventa DAF2.06 Electric Spring Return Actuator.
The Joventa electric spring return damper-actuator series has been specially developed for the motorized operation of safety air dampers (anti-icing) in air conditioning systems, smoke evacuation dampers, and sealing dampers. When the control signal is applied, the actuator drives the damper to the operational position, while evenly tensioning the integrated spring. Should the power supply to the actuator be interrupted, the stored energy in the spring will immediately move the damper to the safety position. The compact design and universal adapter fitted with limitation of rotation angle make this Joventa actuator highly versatile.
* Electrical connections with halogen-free cable
* Up to 5 actuators in parallel operation possible
* Simple direct-mount with universal adapter on 10-16mm shaft or square shaft from 10-14mm
* Minimum damper shaft of 45mm length
* Selectable direction of rotation
* Limitation of rotation angle
* 1 adjustable auxiliary switch
* Automatic shut-off at end position (overload switch)
* Energy saving at end positions
