Fluke dsp-4000 digital cableanalyzer CAT5E CAT6 DSP4000
Fluke Network DSP-4000 Digital CableAnalyzer
Cable Types: TIA Category 3, 4, 5, 5E and 6: 100W, ISO/IEC Class C and D: 100W and 120W, TIA Category 3, 4, 5, 5E and 6: 100W, ISO/IEC Class C and D: 100W and 120W, 150W IBM Type 1, 6, and 9(adapter required), 10BASE5 ThickNet, 10BASE2 ThinNet, RG-58, RG-58 Foam, RG-59, RG-59 Foam, RG-8, RG-8A/U, RG-62, Multimode and singlemode fiber using fiber test accessories; Test Standards: TIA Category 3 and 5e per TIA/EIA-568B, TIA Category 5 (1000BASE-T) per TIA TSB-95, TIA Category 6 per TIA/EIA-568B.2-1 (Addendum #1 to TIA/EIA-568B.2), ISO/IEC 11801 Class C and D (new), ISO/IEC 11801-2000 Class C and D (new), STP cabling, (IBM Type 1, 150 W), ANSI TP-PMD, IEEE 802.3 10BASE5, 10BASE2, IEEE 802.3, 10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.5; Speed of Autotest: Full Autotest of Cat 5 UTP cable, including 6 pair combinations for NEXT in both directions, in approximately 35 seconds; LAN Traffic: Monitor provides an audible tone to indicate amount of traffic, Monitors 10BASE-T Ethernet traffic using the Monitor RJ45 jack, Monitors 100BASE-TX Ethernet traffic using the Monitor RJ45 jack, Auto-negotiates between 10BASE-T and 100BASE-TX using the Monitor RJ45 jack, Blinks the Link Light on a 10BASE-T, 10/100BASE-TX or a 100BASE-TX hub; Cable Tone Generator: Provides a tone generator that can be detected by a handheld tone probe; Display: Graphic bit-mapped LCD with back light and adjustable contrastl; Input Protection: Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage; Power: Main instrument and smart remote:Rechargeable NiMH battery 7.2V, 3400 mAH, Typical battery life 8-10 hours, with recharge time of 4 hours, May be charged while in the instrument (while operating or off-line); Language Support: English, French, German, Spanish, Italian, Portuguese, Japanese, and Simplified Chinese
The Fluke Networks DSP-4000 Series CableAnalyzers (hereafter referred to as the test tool ) are hand-held instruments used to certify, test, and troubleshoot coaxial and twisted pair cabling in local area network (LAN) installations. The test tool combines test pulses with digital signal processing to provide fast, accurate results and advanced testing capabilities up to 350 MHz.

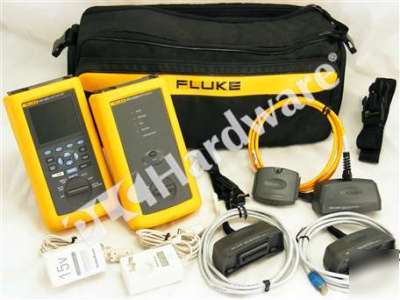

One Fluke Network DSP-4000 Digital CableAnalyzer with Carrying Case and accessories in excellent working and cosmetic condition.
