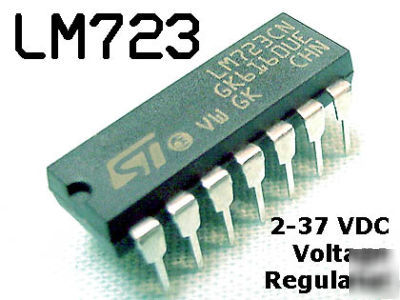

(5) LM723 723 UA723 precision variable regulator 2-37 v
(5) LM723CN Voltage Regulators
Positive, Negative and Switching Applications
* 150 mA standalone output current
* Extremely low 1.7 mA standby current
* Currents > 10A with external transistors
* Voltage Adjustable 2V to 37V
* Use as a linear or a switching regulator
The LM723 is a voltage regulator designed primarily for series regulator applications. By itself, it will supply output currents up to 150 mA, but external transistors can be added to provide any desired load current. The circuit features extremely low standby current drain, and provision is made for either linear or foldback current limiting.
The LM723 is also useful in a wide range of other applications such as shunt regulator, current regulator or temperature controller.
Datasheet - LM723CN (471K PDF)
