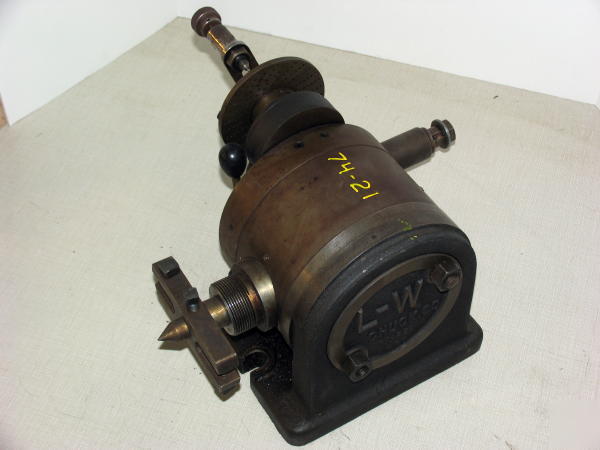

L-W Universal Dividing Head 10"
L-W Universal Dividing Head
This operates from the left hand side of the table.
Swing at 0 Degree Tilt: 11"
Head Swivels: -20 Deg. to +100 Deg.
Table to Drive Shaft Center: 4"
Indexing Positions on Plate: 21, 23, 27, 29, 31 & 33
External Spindle Nose Mount: 2-1/4"-10
Internal Spindle Nose Taper: #3 MT
Diameter of Center Hole: 1-3/16"
Overall Dimensions: 15" x 15" x 12" High
Tailstock Available at Extra Cost.
