Square d pendant station 9001AEQ3398G2 series a

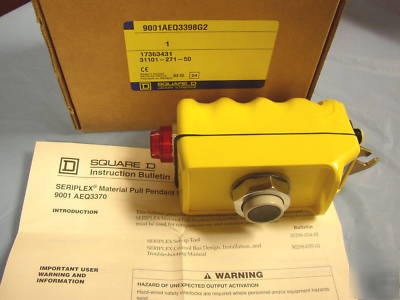

Square D SERIPLEX Pendant Station 9001AEQ3398G2 Series A
Unused surplus item in original box with instructions
* Nominal voltage rating: 24 VDC
* Power supply voltage range: 19.3 to 30 VDC including ripple
* Bus power supply current drain: 16 mA typical, 20 mA max
* Pendant capacitance: 75 pF typical
* Bus clock frequency operating range: 10kHz to 200 kHz
* Operating tempurature: -25 to 70 C (-13 to +158 F)
* Relative humidity: 5 to 95%, non condensing
* Shock: 30 g, 3 axes, 11 ms duration, half-sine pulse
* Vibration: 10 to 55 Hz, 1 mm peak to peak, 2 hour in 3 axes
* Works with hand-held set-up tool adapter cable for 5-pin mini-style connectors
