Fm systems video timing meter (vtm) with cable

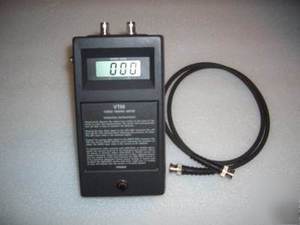

FM Systems Video Timing Meter (VTM) With Cable
The VTM Video Timing Meter is used to bring CCTV cameras into synchronism so that monitors and/or recorders can be switched among cameras without causing "rolling" of the picture. The VTM is connected to a "reference camera" and the camera to be synchronized at the monitoring location. The synchronizing control on the camera to be adjusted is then turned clockwise or counter clockwise until the VTM reads 0 (zero) on the digital display. The VTM is calibrated in horizontal TV lines, so that +3 means that the camera being tasted is 3 lines advanced on the "reference camera" and a VTM reading of -3 means it is 3 lines behind. The maximum delay or advance would be 262 lines, indicating that one camera is just starting an Evan Frame when the other is just starting an Odd Frame. A 0 (zero) reading indicates that both cameras start a new frame at the sama time thereby eliminating the possibility of a roll.
The VTM is a hand-held, battery operated digital display meter that requires very little training to usa. Built-in displays indicate when video is received at each of the two inputs. When video is received at both the Reference and Test input, the timing error between the two video signals is automatically displayed.
