> Dodds se-1-15AF single spindle cnc dovetailer
Dodds se-1-15AF single spindle cnc dovetailer

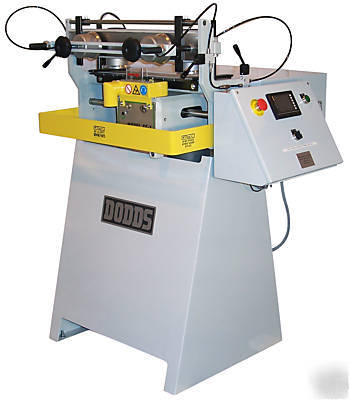

DODDS new single spindle dovetailer, Model SE-1-15AF, with automatic feed of the cutter for dovetailing standard English dovetails on one-inch centerlines. Servomotors control the automatic feed with the reliability of electrical components.
Enter the part parameters into the operator interface, namely the material thickness and part width. Place the drawer sides vertically against each side fence and secure the part with its pneumatic clamp. Next place the drawer front or back horizontally against the front or back fence and up against the drawer side, and secure it with the pneumatic clamp. Start the spindle and depress the cycle start. The spindle will make a score cut and then dovetail the first pair of parts. The spindle will then feed into position for the second pair based on the part height and complete the dovetailing process. Cycle time is based on cutting dovetails so a narrow part will be complete in less time than a wide part. Once the first cycle is complete unclamp and remove the parts, flip end to end and to opposite fences, clamp into place and begin the cycle again. Drawers up to 6 in height can be dovetailed in pairs.
Spindle movement controlled by servomotors.
Touch screen operator interface.
Servo controls for consistency.
Eccentric spindle collet for resharpened cutters.
Chipbreaker assembly for optimum quality.
Electrical: 110V, single phase, 60 cycle, 20 amp or 220V, single phase, 60 cycle, 20 amp
