> Hp agilent 54750A w/ 54751AX2 digitizing oscilloscope
Hp agilent 54750A w/ 54751AX2 digitizing oscilloscope

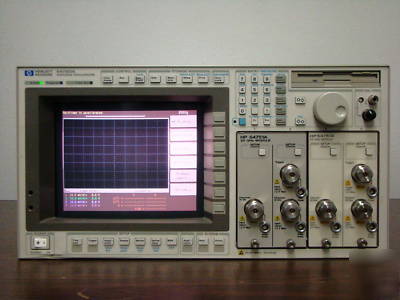

HP Agilent 54750A w/ 54751A (x2) Digitizing Oscilloscope
Description: The HP Agilent 54750A is a modular system. Up to four high-bandwidth channels and TDR are supported by the mainframe. The modular design allows for expansion to meet changing needs.
The 54751A Vertical Plug-In is a 2-channel 20GHz vertical plug-in for the 54750A Digitizing Modular Oscilloscope Mainframe (not included). The two-wide configuration allows up to four channels in the 54750A. The bandwidth of each channel may be selected independently from the channel menu as either 20GHz or 12.4GHz. The bandwidth of the channel is altered by changing the bias on the sampling bridge. The low-noise characteristic of the plug-in gives an RMS noise level of <1.0 mV in the high-bandwidth mode and <0.5 mV in the low-bandwidth mode.

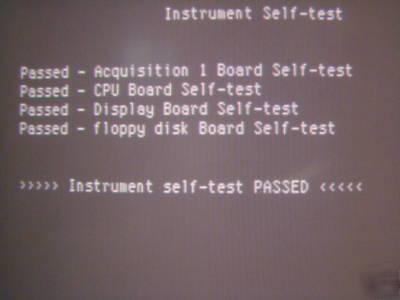

54750A passes "Power-On Test" and "Instrument Self-Test". However, the complete working condition of this unit is unknown. We have no way of testing it.
Both 54751A plug-in modules are fully tested.
